DTC P025C:00 [SKYACTIV-G 2.0, SKYACTIV-G 2.5]


id0102h4008400

Caution
•  Vehicle specifications differ depending on the vehicle identification number (VIN).
―  Type A VIN:
JM0 KE****** 100001—
JM6 KE****** 100001—
JM7 KE****** 100001—
JM8 KE****** 100001—
JMZ KE****** 100001—
KE10** 100001—
―  Type B VIN:
JM0 KE****** 200001—
JM6 KE****** 200001—
JM8 KE****** 200001—
JMZ KE****** 200001—
KE10** 200001—

DTC P025C:00

Fuel pump control module result of on-board diagnostic test low input

DETECTION CONDITION
•  Result of on-board test cannot be received from fuel pump control module (voltage is too low).
Diagnostic support note
•  This is a continuous monitor (CCM).
•  The check engine light illuminates if the PCM detects the above malfunction condition during the first drive cycle. (Type A VIN)
•  The check engine light does not illuminate. (Type B VIN)
•  FREEZE FRAME DATA (Mode 2) is not available. (Type B VIN)
•  FREEZE FRAME DATA (Mode 2) is available. (Type A VIN)
•  Snapshot data is available.
•  DTC is stored in the PCM memory.
FAIL-SAFE FUNCTION
Not applicable
POSSIBLE CAUSE
•  Fuel pump control module connector or terminals malfunction
•  PCM connector or terminals malfunction

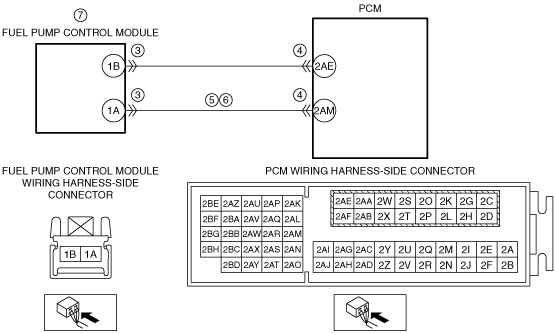

•  Short to ground in wiring harness between fuel pump control module terminal 1A and PCM terminal 2AM
•  Open circuit in wiring harness between fuel pump control module terminal 1A and PCM terminal 2AM
•  Fuel pump control module malfunction
•  PCM malfunction

Diagnostic Procedure

STEP

INSPECTION

ACTION

1
VERIFY FREEZE FRAME DATA (MODE 2)/SNAPSHOT DATA HAS BEEN RECORDED
•  Has the FREEZE FRAME DATA (Mode 2)/snapshot data been recorded?
Yes
Go to the next step.
No
Record the FREEZE FRAME DATA (Mode 2)/snapshot data on the repair order, then go to the next step.
2
VERIFY RELATED SERVICE INFORMATION AVAILABILITY
•  Verify related Service Information availability.
•  Is any related Service Information available?
Yes
Perform repair or diagnosis according to the available Service Information.
•  If the vehicle is not repaired, go to the next step.
No
Go to the next step.
3
INSPECT FUEL PUMP CONTROL MODULE CONNECTOR CONDITION
•  Switch the ignition off.
•  Disconnect the fuel pump control module connector.
•  Inspect for poor connection (such as damaged/pulled-out pins, corrosion).
•  Is there any malfunction?
Yes
Repair or replace the connector and/or terminals, then go to Step 8.
No
Go to the next step.
4
INSPECT PCM CONNECTOR CONDITION
•  Disconnect the PCM connector.
•  Inspect for poor connection (such as damaged/pulled-out pins, corrosion).
•  Is there any malfunction?
Yes
Repair or replace the connector and/or terminals, then go to Step 8.
No
Go to the next step.
5
INSPECT FUEL PUMP CONTROL MODULE SIGNAL CIRCUIT FOR SHORT TO GROUND
•  Verify that the fuel pump control module and PCM connectors are disconnected.
•  Inspect for continuity between fuel pump control module terminal 1A (wiring harness-side) and body ground.
•  Is there continuity?
Yes
Repair or replace the wiring harness for a possible short to ground, then go to Step 8.
No
Go to the next step.
6
INSPECT FUEL PUMP CONTROL MODULE SIGNAL CIRCUIT FOR OPEN CIRCUIT
•  Verify that the fuel pump control module and PCM connectors are disconnected.
•  Inspect for continuity between fuel pump control module terminal 1A (wiring harness-side) and PCM terminal 2AM (wiring harness-side).
•  Is there continuity?
Yes
Go to the next step.
No
Repair or replace the wiring harness for a possible open circuit, then go to Step 8.
7
INSPECT FUEL PUMP CONTROL MODULE
•  Reconnect all disconnected connectors.
•  Inspect the fuel pump control module.
•  Is there any malfunction?
Yes
Replace the fuel pump control module, then go to the next step.
No
Go to the next step.
8
VERIFY DTC TROUBLESHOOTING COMPLETED
•  Always reconnect all disconnected connectors.
•  Clear the DTC from the PCM memory using the M-MDS.
•  Perform the KOEO or KOER self test.
•  Is the same DTC present?
Yes
Repeat the inspection from Step 1.
•  If the malfunction recurs, replace the PCM.
Go to the next step.
No
Go to the next step.
9
VERIFY AFTER REPAIR PROCEDURE
•  Perform the “AFTER REPAIR PROCEDURE”.
•  Are any DTCs present?
Yes
Go to the applicable DTC inspection.
No
DTC troubleshooting completed.
