COMPRESSOR BYPASS SOLENOID VALVE REMOVAL/INSTALLATION [SKYACTIV-D 2.2]

id0113z7265600

Caution

•  If the vacuum hose is installed incorrectly, it could cause a vehicle malfunction. To prevent this, refer to “VACUUM HOSE STRUCTURAL VIEW” and install the vacuum hose correctly. (See Vacuum hose structural view.)

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the battery and the battery tray. (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

3.  Remove in the order shown in the figure.

ATX

ac5wzw00004659

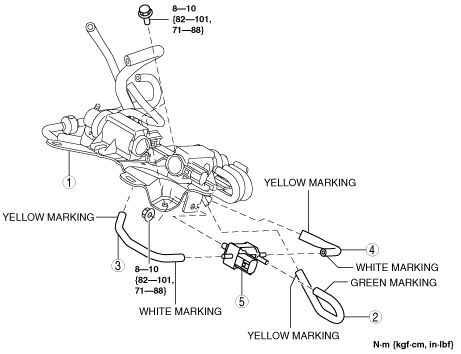

MTX

ac5wzw00004660

1	Vacuum pipe bracket
2	Vacuum hose No.1 (See Vacuum Hose No.1 Installation Note.)
3	Vacuum hose No.2 (See Vacuum Hose No.2 Installation Note.)
4	Vacuum hose No.3 (See Vacuum Hose No.3 Installation Note.)
5	Compressor bypass solenoid valve

4.  Install in the reverse order of removal.

Vacuum Hose No.3 Installation Note

1.  Install vacuum hose No.3 as shown in the figure.

Compressor bypass solenoid valve side

ac5wzw00004661

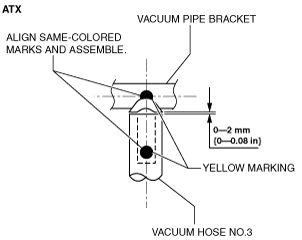

Vacuum pipe bracket side

ac5wzw00004662

ac5wzw00004663

Vacuum Hose No.2 Installation Note

1.  Install vacuum hose No.2 as shown in the figure.

Compressor bypass solenoid valve side

ac5jjw00003474

Vacuum pipe bracket side

ac5wzw00004664

ac5wzw00004665

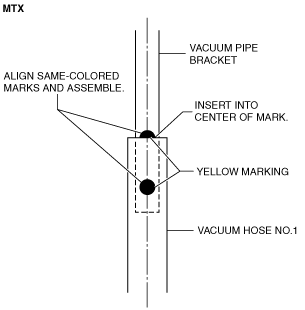

Vacuum Hose No.1 Installation Note

1.  Install vacuum hose No.1 as shown in the figure.

Compressor bypass solenoid valve side

ac5wzw00004666

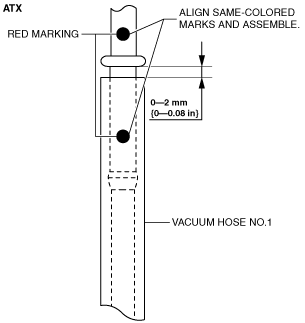

Compressor bypass valve actuator side

ac5wzw00004667

ac5wzw00004668

Vacuum hose structural view

1.  Verify that the vacuum hose is installed correctly as shown in the figure.

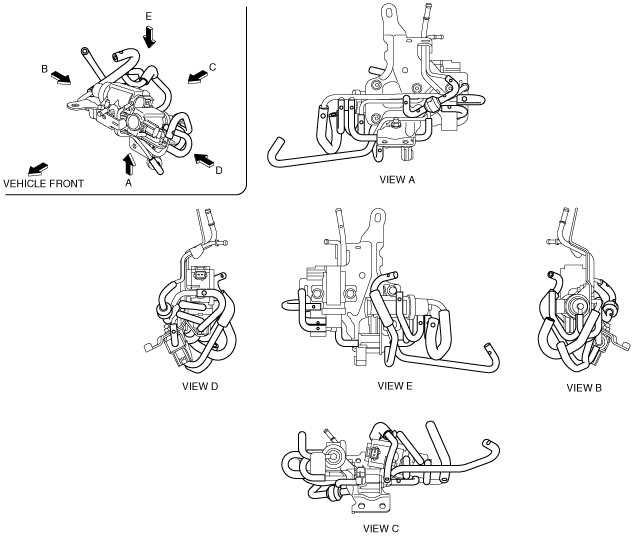

Whole figure (ATX)

ac5wzw00005336

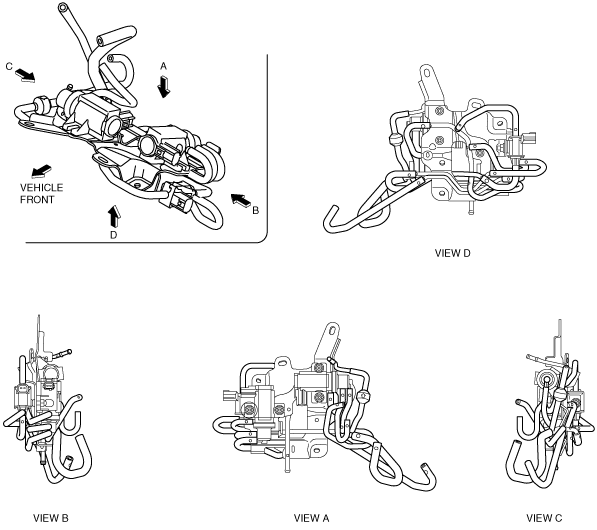

Whole figure (MTX)

ac5wzw00005337

Compressor bypass solenoid valve side (ATX)

ac5wzw00004671

Compressor bypass solenoid valve side (MTX)

ac5wzw00004672

Vacuum pipe bracket side (ATX)

ac5wzw00004673

Vacuum pipe bracket side (MTX)

ac5wzw00004674
