•  The driver's intentions are transmitted to the PCM via the accelerator pedal.

•  If the accelerator pedal is depressed carelessly, kickdown control will be implemented based on the accelerator pedal being determined as fully open, and vehicle shock will occur. A kickdown switch has been adopted so that it can be determined that the accelerator pedal is fully open based on the driver’s intention of depressing the accelerator pedal for kickdown.

•  The accelerator pedal has a built-in APP sensor and kickdown switch (ATX)^*.

ac5wzn00002616

•  For the APP sensor, refer to CONTROL SYSTEM. (See ACCELERATOR PEDAL POSITION (APP) SENSOR [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)

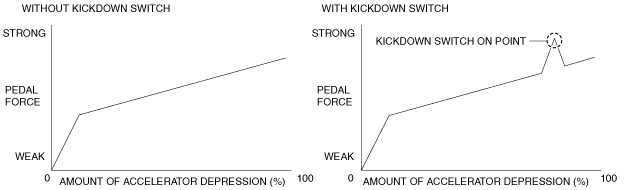

•  A load can be felt while the accelerator pedal is being depressed and when it is further depressed the kickdown switch turns on.

am6zzn00002507

•  The driver can control the kickdown by knowing the amount of accelerator depression.

•  The kickdown switch is only a measure of the kickdown. An electrical signal is not transmitted by the kickdown switch turning on/off, and vehicle control is not affected.
