EGR COOLER BYPASS VALVE [SKYACTIV-D 2.2]

id0116e1707800

Purpose, Function

• The amount of exhaust gas not passed through the EGR cooler, which is re-circulated to the intake manifold, is adjusted.

Construction

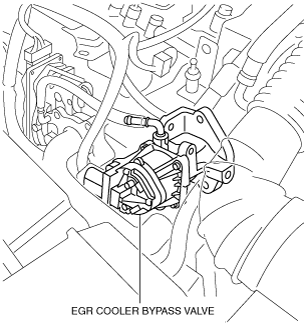

• The EGR cooler bypass valve is installed to the intake manifold.

ac5wzn00002261

• Consists of the valve, spring, rod, filter, plug, and motor component.

ac5wzn00002262

• The EGR cooler bypass valve has an integrated EGR cooler bypass valve position sensor. (See EGR COOLER BYPASS VALVE POSITION SENSOR [SKYACTIV-D 2.2].)

Operation

• The PCM drives the DC motor of the valve by the pulse-width modulation signal.

ac5wzn00002263

• Control of exhaust gas temperature is enabled by cooperative control of the EGR valve.
