DC-DC CONVERTER [SKYACTIV-G 2.0, SKYACTIV-G 2.5]

id0117i0004500


Vehicle With i-stop


Purpose, Function

•  When the engine is restarted by the i-stop control, the battery voltage temporarily decreases to operate the starter. Pressure is increased to maintain the voltage for vehicle electrical devices at that time.


Construction

•  The DC-DC converter is installed on the vehicle's left front part (lower part of front combination light).
ac5wzn00001021


Operation

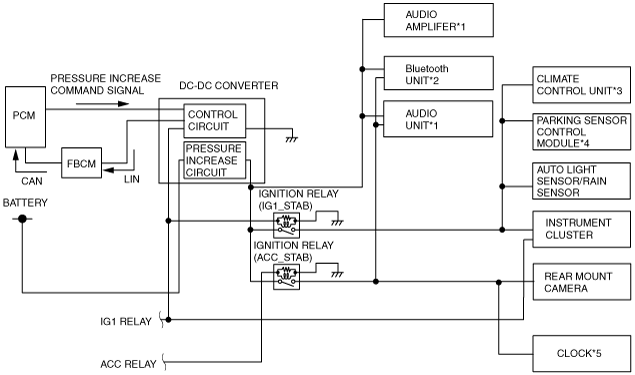

•  The battery voltage increases based on the control signal from the PCM.
ac5wzn00001022
*1  :Vehicles with audio system.
*2  :Vehicles with Bluetooth system.
*3  :Vehicles with auto A/C.
*4  :Vehicles with parking sensor system.
*5  :Vehicles with manual A/C.
•  For details of the DC-DC converter control, refer to CONTROL SYSTEM (See DC-DC CONVERTER CONTROL [SKYACTIV-G 2.0, SKYACTIV-G 2.5].).


Fail-safe

DTC

Fail-safe
P0A8D:00
•  Inhibits engine-stop by operating the i-stop function.
•  Inhibits a part of the generator output control.
P0A94:00
•  Inhibits engine-stop by operating the i-stop function.
