DC-DC CONVERTER REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5]

id0117i0004600

Vehicle With i-stop

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)

2.  Remove the front under cover No.1. (See FRONT UNDER COVER No.1 REMOVAL/INSTALLATION.)

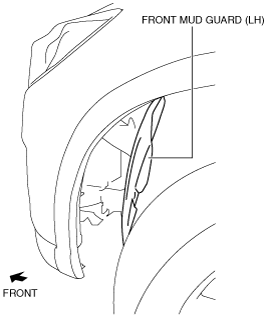

3.  Set the front mud guard (LH) aside as shown in the figure. (See MUDGUARD REMOVAL/INSTALLATION.)

ac5wzw00005111

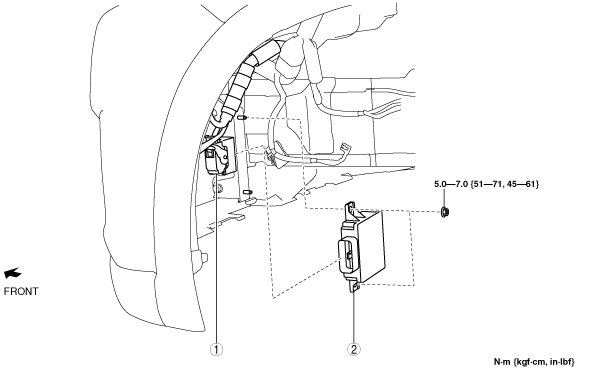

4.  Remove in the order indicated in the table.

5.  Install in the reverse order of removal.

ac5wzw00002643

1	DC-DC converter connector (See DC-DC converter connector installation note.)
2	DC-DC converter

DC-DC converter connector installation note

1.  Before installation, verify that the connector lever is unlocked position.

ac5wzw00002644

2.  Connect the DC-DC converter connector using the following procedure:

(1)  Insert the DC-DC converter connector straight until it stops.

ac5wzw00002645

(2)  Move the connector lever until a click sound is heard.

ac5wzw00002646
