CRANKSHAFT POSITION (CKP) SENSOR [SKYACTIV-D 2.2]

id0140z7006300

Purpose/Function

• Detects the crankshaft speed as basic information for mainly determining the fuel injection timing.

• Detects the crankshaft speed and sends it to the PCM as a CKP signal.

Construction

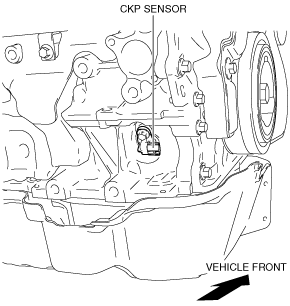

• Installed on the side of the cylinder block (right side).

ac5wzn00001610

• An MR (Magnetic Resistance) element has been adopted as the detecting element for detecting the crankshaft speed.

Operation

• Sends the signal, which fluctuates according to the crankshaft speed, to the PCM.

ac5wzn00001611

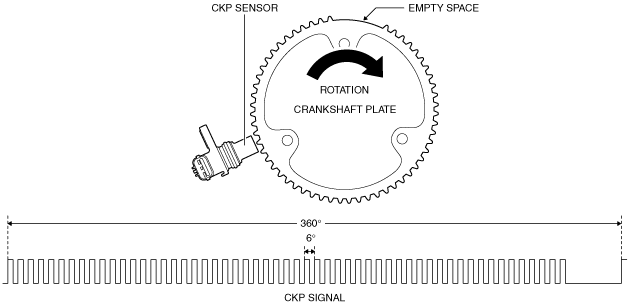

CKP sensor characteristic

ac5wzn00001612

Fail-safe

DTC No.

Fail-safe function

P0337:00

•  PCM restricts engine torque.

•  Inhibits the EGR control.

•  Inhibits the diesel particulate filter regeneration control.

•  Inhibits engine-stop by operating the i-stop function.

•  PCM restricts engine-transaxle integration control.
