NEUTRAL SWITCH [SKYACTIV-D 2.2]

id0140z7008100

Purpose/Function

• Detects the neutral position of the shift lever.

Construction

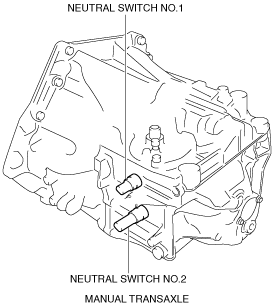

• Installed to the manual transaxle.

ac5wzn00000051

• An ON/OFF type switch has been adopted.

Operation

• Sends the neutral switch on/off signal to the PCM.

ac5wzn00002459

• The contact point is on when in neutral to output voltage and off when not in neutral.

ac5wzn00000030

ac5wzn00000031

Fail-safe

• Function not equipped.
