BOOST AIR TEMPERATURE SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2]

id0140z7216600

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION.)

3.  Remove the bolt.

ac5wzw00008415

4.  Remove the charge air cooler duct (RH).

5.  Disconnect the boost air temperature sensor connector.

ac5wzw00008416

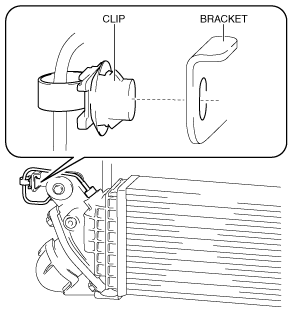

6.  Remove the clip from the bracket.

ac5wzw00008417

7.  Remove the boost air temperature sensor.

ac5wzw00008418

8.  Install in the reverse order of removal.
