ENGINE OIL DATA RESET [SKYACTIV-D 2.2]

id0140z7444700

Using the M-MDS

1.  Connect the M-MDS to the DLC-2.

2.  After the vehicle is identified, select the following item from the initial screen of the M-MDS.

(1)  Select the “Powertrain”.

3.  Then, select the items from the screen menu in the following order.

(1)  Select the “Data Reset”.

(2)  Select the “Engine oil”.

4.  Perform the procedure according to the directions on the screen.

Without Using the M-MDS

Note

•  DTC P1905:00 may be detected by grounding the test terminal to the body. In this case, DTC P1905:00 is automatically erased by disconnecting the test terminal ground.

1.  Switch the ignition ON (engine off).

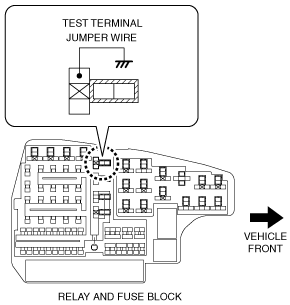

2.  Short the connection between body ground and test terminal using a jumper wire.

ac5wzw00006493

3.  Repeatedly depress and release the accelerator pedal five times within 5 s.

Note

•  If the engine oil data reset is completed correctly, the glow indicator light flashes five times.

4.  Verify that the glow indicator light flashes five times.

―  If flashing of the glow indicator light cannot be verified, repeat the procedure from Step 1.

5.  Detach the jumper wire from the test terminal.

6.  Switch the ignition off.
