AIR FUEL RATIO (A/F) SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2]

id0140z7899700

Warning

• A hot engine and exhaust system can cause severe burns. Turn off the engine and wait until they are cool before removing the exhaust system.

Caution

• Do not allow flammable objects such as the taping for bundling a wiring harness to come into contact with the catalytic converter.

Note

• If the A/F sensor is replaced, perform the A/F sensor data reset procedure. (See AIR FUEL RATIO (A/F) SENSOR DATA RESET [SKYACTIV-D 2.2].)

• If penetrant lubricating spray penetrates the airflow hole of the A/F sensor, it could cause interference with the A/F sensor function.

• When removing the A/F sensor, wrap a rag around the lower position so that penetrant lubricating spray does not get sprayed into the airflow hole.

ac5wzw00004499

Operation After Replacing A/F sensor

1. If the A/F sensor is replaced, perform the following procedure.

Step

Action

Page

1

Perform A/F sensor data reset procedure.

(See AIR FUEL RATIO (A/F) SENSOR DATA RESET [SKYACTIV-D 2.2].)

2

Wait for 20 s.

—

3

Perform the KOEO self test.

(See KOEO/KOER SELF TEST [SKYACTIV-D 2.2].)

4

Perform the KOER self test.

(See KOEO/KOER SELF TEST [SKYACTIV-D 2.2].)

5

Perform diesel particulate filter data reset.

(See DIESEL PARTICULATE FILTER DATA RESET [SKYACTIV-D 2.2].)

6

Perform the following procedure.

Caution

•  If the M-MDS is connected to the DLC-2, disconnect the M-MDS. Otherwise, it could adversely affect safety when performing the procedure.

1.  Vehicle is traveling at a speed of 50 km/h {31 mph} or more.

2.  Release the accelerator pedal at a vehicle speed of 50 km/h {31 mph} or more and maintain this condition for 6 s.

—

7

Verify that the PID “O2S11_CAL” value is other than 0.

(See ON-BOARD DIAGNOSTIC TEST [SKYACTIV-D 2.2].)

Step	Action	Page
1	Perform A/F sensor data reset procedure.	(See AIR FUEL RATIO (A/F) SENSOR DATA RESET [SKYACTIV-D 2.2].)
2	Wait for 20 s.	—
3	Perform the KOEO self test.	(See KOEO/KOER SELF TEST [SKYACTIV-D 2.2].)
4	Perform the KOER self test.	(See KOEO/KOER SELF TEST [SKYACTIV-D 2.2].)
5	Perform diesel particulate filter data reset.	(See DIESEL PARTICULATE FILTER DATA RESET [SKYACTIV-D 2.2].)
6	Perform the following procedure. Caution • If the M-MDS is connected to the DLC-2, disconnect the M-MDS. Otherwise, it could adversely affect safety when performing the procedure. 1. Vehicle is traveling at a speed of 50 km/h {31 mph} or more. 2. Release the accelerator pedal at a vehicle speed of 50 km/h {31 mph} or more and maintain this condition for 6 s.	—
7	Verify that the PID “O2S11_CAL” value is other than 0.	(See ON-BOARD DIAGNOSTIC TEST [SKYACTIV-D 2.2].)

A/F Sensor Removal/Installation

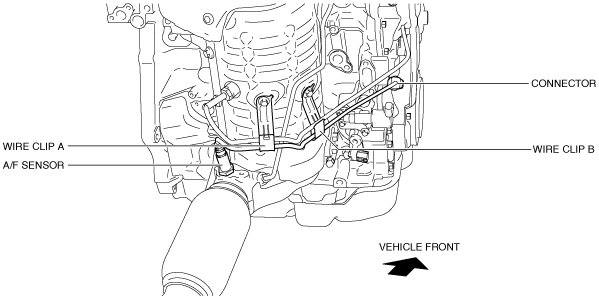

ac5wzw00004500

1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2. Lift up the vehicle.

3. Remove the following parts:

(1) Front under cover No.2 (2WD) (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

(2) Splash shield (See SPLASH SHIELD REMOVAL/INSTALLATION.)

(3) Seal rubber (No.1) and noise suppression cover (No.1) (See TIMING CHAIN REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

4. Disconnect the A/F sensor connector.

5. Remove the insulator (exhaust system). (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

6. Remove the wiring harness from the wire clip A and B. (See Assembly of Wiring Harness to Wire Clip Note.)

ac5wzw00004501

7. Disconnect the propeller shaft on the transmission side. (4WD) (See PROPELLER SHAFT REMOVAL/INSTALLATION.)

8. Remove the center bearing bracket securing bolts for the propeller shaft and temporarily move the propeller shaft onto the front crossmember. (4WD) (See PROPELLER SHAFT REMOVAL/INSTALLATION.) (See FRONT CROSSMEMBER REMOVAL/INSTALLATION.)

9. Remove the A/F sensor using the SST.

ac5wzw00004502

10. Install in the reverse order of removal.

11. Perform operation after replacing A/F sensor. (See Operation After Replacing A/F sensor.)

Assembly of Wiring Harness to Wire Clip Note

• Secure the wiring harness to the wire clip A so that the band on the wiring harness is positioned to the left side of the wire clip A.

ac5wzw00004503

• Secure the wiring harness to the wire clip B so that the band on the wiring harness is positioned to the both sides of the wire clip B.

ac5wzw00004504
