Item
Specification
SKYACTIV-G 2.0
SKYACTIV-G 2.5
SKYACTIV-D 2.2
Front axle
Bearing type
Angular ball bearing
Rear axle
Bearing type
Angular ball bearing
Front drive shaft
Front drive shaft joint type
Wheel side
Ball joint
Differential side
Tripod joint [ATX]
Double offset joint [MTX]
Front drive shaft diameter
ATX
(mm {in})
LH: 26.0 {1.024}
RH: 27.5 {1.083}
LH: 24.5 {0.965}
RH: 27.5 {1.083}
LH: 27.0 {1.063}
RH: 29.0 {1.142}
MTX
(mm {in})
LH: 27.0 {1.063}
RH: 29.0 {1.142}
Rear drive shaft (4WD)
Rear drive shaft joint type
Wheel side
Ball joint
Differential side
Tripod joint
Rear drive shaft diameter
(mm {in})
22.0 {0.866}
Rear differential (4WD)
Rear and front wheel torque distribution unit
Electronic control coupling
Reduction gear
Hypoid gear
Differential gear
Straight bevel gear
Ring gear size
(mm {in})
140 {5.51}
Final gear ratio
2.928
Gears:
Number of teeth
Drive pinion
14
Ring gear
41
Differential oil
Type
Grade
API service GL-5
Viscosity
SAE 80W-90
Oil capacity
(approx. quantity)
(L {US qt, lmp qt})
0.45 (0.48, 0.40)

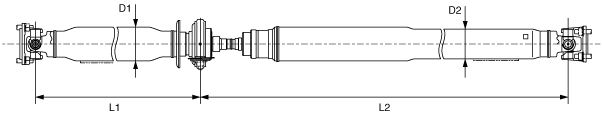

Propeller shaft (4WD)
Length
(mm {in})
L1
741.5 {29.19}
L2
1353.8 {53.299}
Outer diameter
(mm {in})
D1
75 {3.0}
D2
68 {2.7}
Joint type
Constant velocity joint
and cross-shaped joint
Constant velocity joint
Double offset joint
Transfer (4WD)
Transfer oil
Type
Grade
API service GL-5
Viscosity
SAE 80W-90
Oil capacity
(approx. quantity)
(L {US qt, Imp qt})
0.45 (0.48, 0.40)
