SYSTEM WIRING DIAGRAM [DYNAMIC STABILITY CONTROL (DSC)]

SYSTEM WIRING DIAGRAM [DYNAMIC STABILITY CONTROL (DSC)]

id0403b2806400

Type A

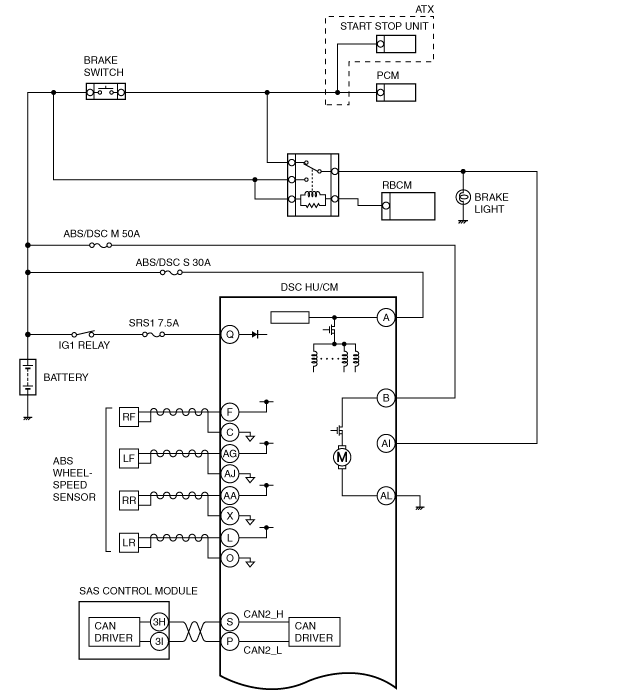

ac5wzw00006875

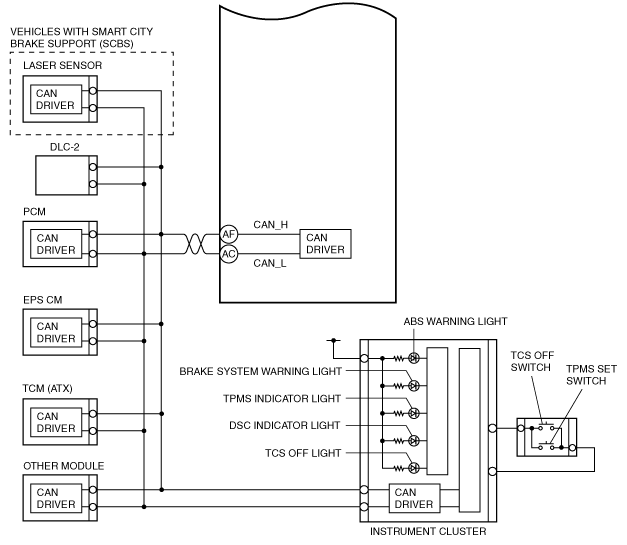

ac5wzw00005657

Type B

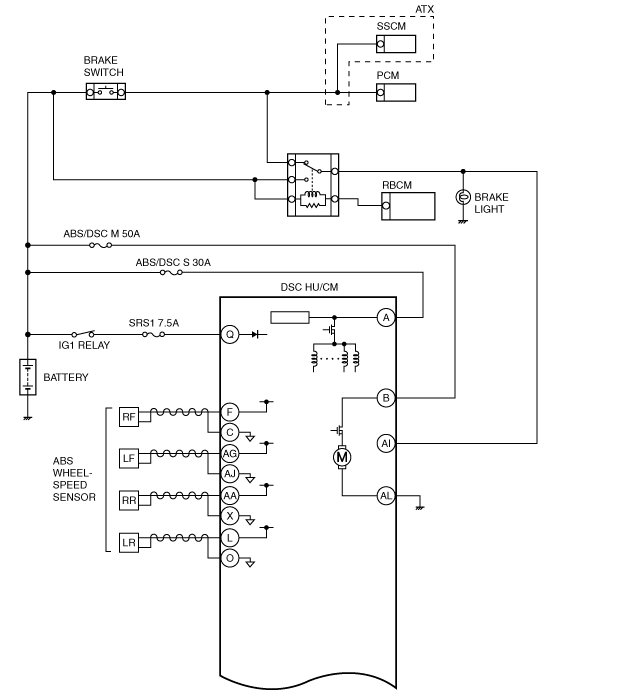

ac5wzw00006876

ac5wzw00006877
