DISC PAD (REAR) REPLACEMENT

id041100800300

1.  Remove in the order indicated in the table.

2.  Install in the reverse order of removal.

3.  After installation, pump the brake pedal a few times and inspect the following:

―  The disc pad projection is securely installed to the piston groove

―  Parking brake lever stroke

―  Brake drag

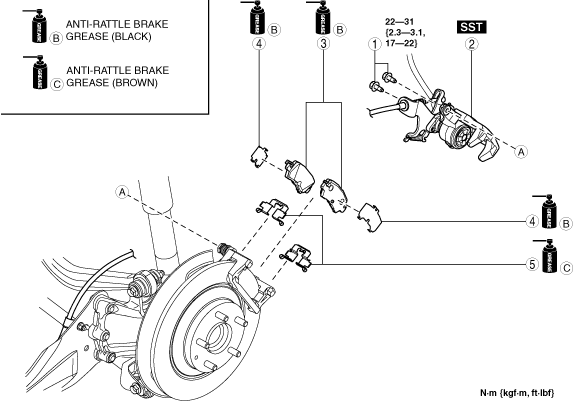

ac5wzw00010613

1	Bolt
2	Caliper (See REAR BRAKE (DISC) REMOVAL/INSTALLATION.)
3	Disc pad
4	Shim
5	Guide plate
