POWER STEERING MALFUNCTION INDICATOR LIGHT
id061300245300
Purpose
• The power steering malfunction indicator light warns the driver that there is a malfunction with the electric power steering (EPS) system.
Function
• If there is a malfunction in the EPS system, the power steering malfunction indicator light illuminates.
• If the EPS system and CAN lines are normal, it illuminates when the ignition is switched ON (engine off), and turns off after the engine is started.
Construction

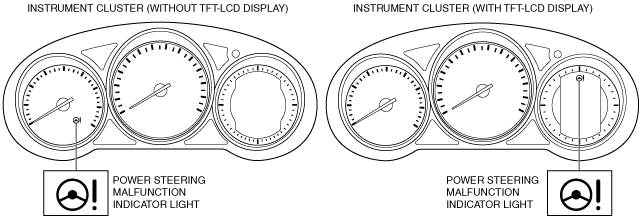

• The power steering malfunction indicator light is built into the instrument cluster.
Operation
EPS system malfunction detection
• If the EPS control module (CM) detects a system malfunction, it sends a power steering malfunction indicator light illumination on request signal to the instrument cluster via CAN.
• The instrument cluster illuminates the power steering malfunction indicator light when it receives a power steering malfunction indicator light illumination on request signal.
Initial check (Without TFT-LCD display)
• If the EPS system and CAN lines are normal, it illuminates when the ignition is switched ON (engine off), and turns off after the engine is started. If there is a system malfunction, the power steering malfunction indicator light illuminates.
Fail-safe
• Function not equipped.
