BLOWER UNIT DISASSEMBLY/ASSEMBLY

id071100800600

Caution

• Apply only the specified grease to the link. Otherwise abnormal noise or improper operation may result.

1. Disassemble in the order indicated in the table.

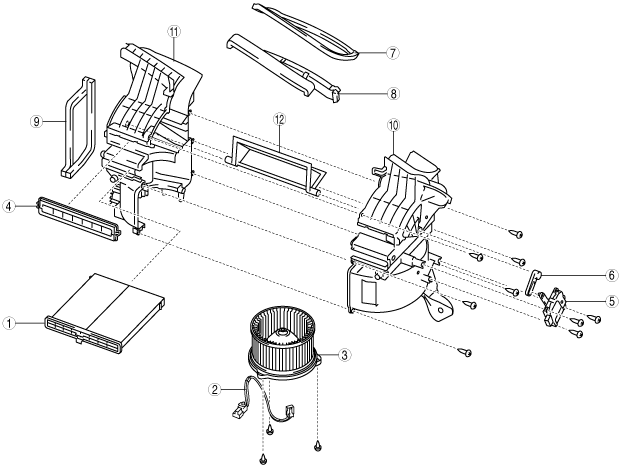

L.H.D.

ac5wzw00001798

R.H.D.

ac5wzw00001799

1

Air filter

2

Harness (with blower motor mid-wiring harness)

3

Blower motor

4

Cover

5

Air intake actuator

6

Air intake link

7

Polyurethane (1)

8

Polyurethane (2)

9

Polyurethane (3)

10

Blower case (1)

11

Blower case (2)

12

Air intake door

2. Assemble in the reverse order of disassembly.

1	Air filter
2	Harness (with blower motor mid-wiring harness)
3	Blower motor
4	Cover
5	Air intake actuator
6	Air intake link
7	Polyurethane (1)
8	Polyurethane (2)
9	Polyurethane (3)
10	Blower case (1)
11	Blower case (2)
12	Air intake door
