•  The heater core temperature sensor detects the airflow temperature passing through the heater core.

•  The heater core temperature sensor signal is used for the i-stop control.

•  The heater core temperature sensor converts the detected temperature to an electric signal.

•  A thermistor-type heater core temperature sensor has been adopted.

•  The heater core temperature sensor is installed to the A/C unit.

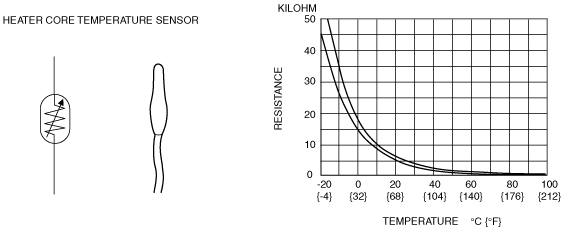

•  The thermistor changes the resistance according to the surrounding temperature.

•  The resistance decreases if the temperature increases, and conversely increases if the temperature decreases as shown in the figure.

•  Function not equipped.
