CONTROL SYSTEM [FULL-AUTO AIR CONDITIONER]


id0740a1126500


Outline

•  Refrigerant pressure sensor adopted in which refrigerant pressure is changed into a linear electric signal and precise information is transmitted.
•  MS-CAN for communication between the instrument cluster and climate control unit adopted.
•  Climate control unit with enlarged operation dials and switches adopted.
•  A climate control unit with an integrated display panel has been adopted.
•  A PTC heater has been adopted to temporarily improve the A/C unit heating performance for diesel engine vehicles which have good thermal efficiency (with PTC heater).
•  An electric water pump has been adopted which assists with the engine coolant circulation (with water pump).

Structural View

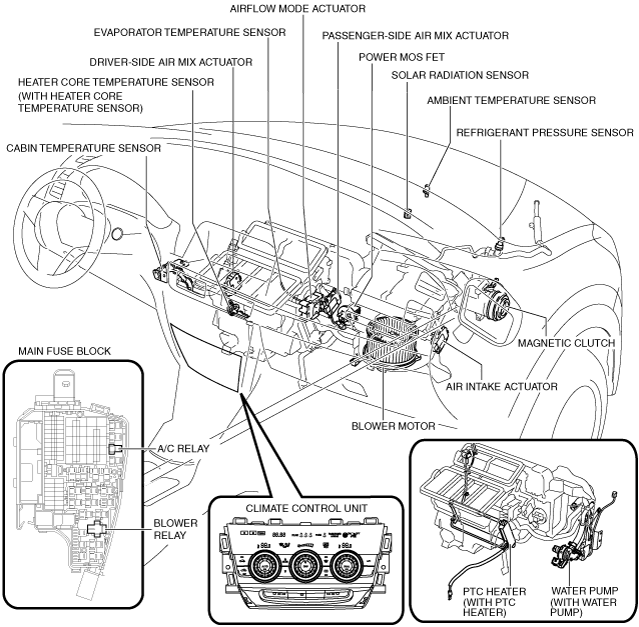

L.H.D.

ac5wzn00000695

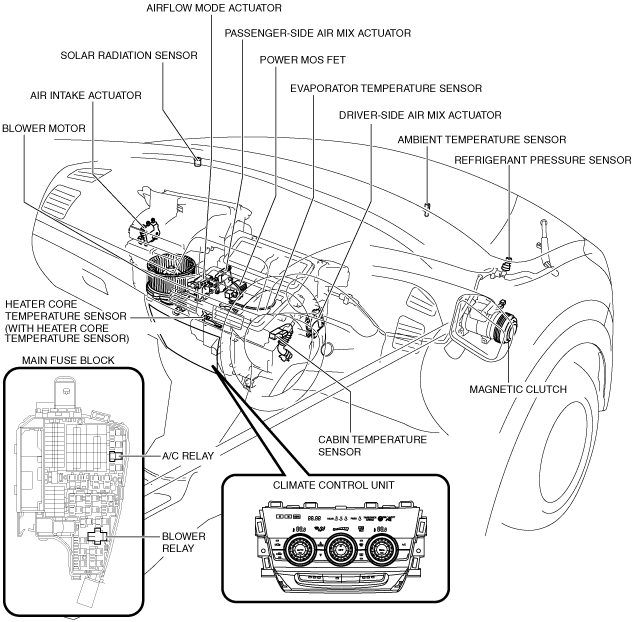

R.H.D.

ac5wzn00000696

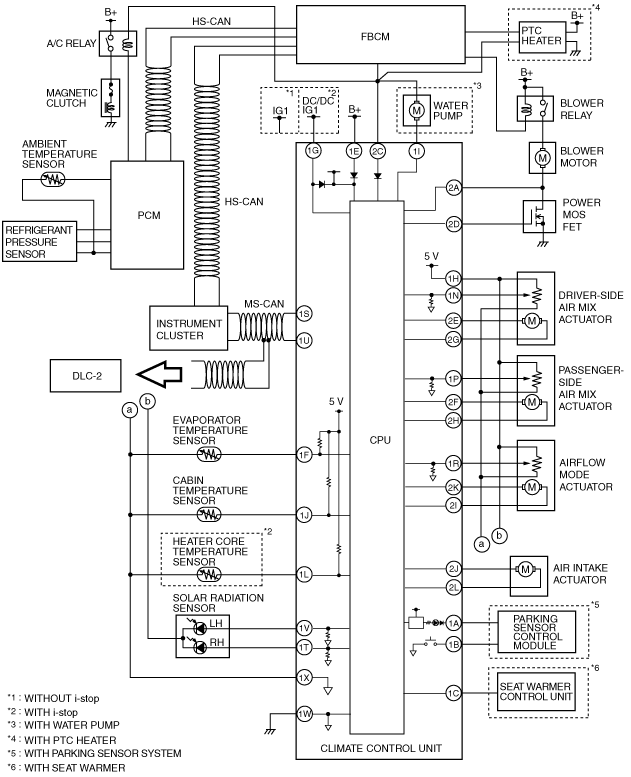

System Wiring Diagram

ac5wzw00002760
