Note
• When removing the power MOS FET, perform the procedure in the posture shown in the figure.
ac5wzw00001836
|
POWER METAL OXIDE SEMICONDUCTOR FIELD EFFECT TRANSISTOR (POWER MOS FET) REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER]
id0740a1800200
ac5wzw00001836
|
1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)
2. Remove the dashboard under cover. (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)
3. Disconnect the connector.
ac5wzw00001837
|

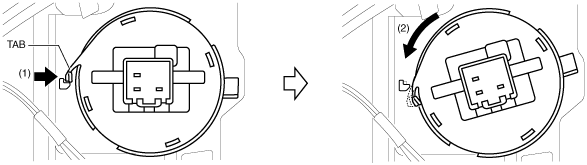

4. Rotate the power MOS FET (2) while pressing the tab (1).
ac5wzw00001838
|
5. Remove the power MOS FET.
ac5wzw00001839
|
6. Install in the reverse order of removal.
