AIR MIX ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER]


id0740a1802400


L.H.D.


Driver-side

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the following parts:

(1)  Side wall (driver-side) (See SIDE WALL REMOVAL/INSTALLATION.)
(2)  Front heat duct (driver-side) (See FRONT HEAT DUCT REMOVAL/INSTALLATION.)

3.  Disconnect the air mix actuator connector.

ac5wzw00001857

4.  Remove the screw.

5.  Remove the driver-side air mix actuator.

6.  Install in the reverse order of removal.


Passenger-side

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the following parts:

(1)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)
(2)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

3.  Disconnect the air mix actuator connector.

ac5wzw00001858

4.  Remove the screw.

5.  Remove the Passenger-side air mix actuator.

6.  Install in the reverse order of removal.


R.H.D.


Driver-side

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the following parts:

(1)  Side wall (driver-side) (See SIDE WALL REMOVAL/INSTALLATION.)
(2)  Front heat duct (driver-side) (See FRONT HEAT DUCT REMOVAL/INSTALLATION.)

3.  Disconnect the air mix actuator connector.

ac5wzw00001859

4.  Remove the screw.

5.  Remove the driver-side air mix actuator.

6.  Install in the reverse order of removal.


Passenger-side

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the following parts:

(1)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)
(2)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

3.  Disconnect the air mix actuator connector.

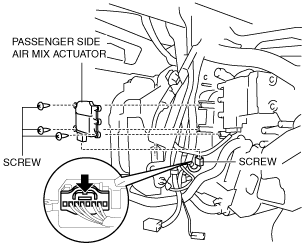

ac5wzw00001860

4.  Remove the screw.

5.  Remove the passenger-side air mix actuator.

6.  Install in the reverse order of removal.
