HEATER CORE TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER]

id0740a1808100

Note

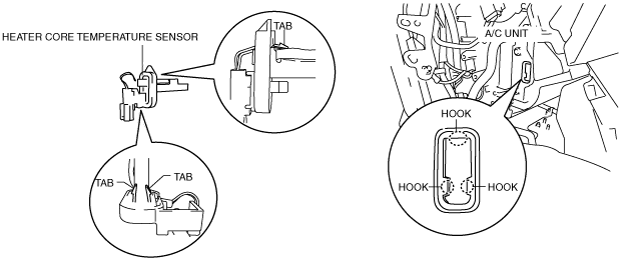

•  The heater core temperature sensor is installed to the A/C unit by engaging the tab.

ac5wzw00001884

L.H.D.

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the following parts:

(1)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(2)  Front heat duct (driver-side) (See FRONT HEAT DUCT REMOVAL/INSTALLATION.)

3.  Disconnect the connector.

ac5wzw00001885

4.  Remove the heater core temperature sensor.

5.  Install in the reverse order of the removal.

R.H.D.

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the following parts:

(1)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(2)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(3)  Front heat duct (passenger-side) (See FRONT HEAT DUCT REMOVAL/INSTALLATION.)

3.  Disconnect the connector.

ac5wzw00001885

4.  Remove the heater core temperature sensor.

5.  Install in the reverse order of the removal.
