MANUAL AIR CONDITIONER CONTROL SYSTEM [MANUAL AIR CONDITIONER]


id0740a2101000


Outline

•  The climate control unit performs the following controls based on the signals from each switch/dial and the sensor.
―  A/C compressor control
―  Defroster control
―  i-stop control

Block Diagram

ac5wzn00000735

Outline of Control System

•  Manual air conditioner has the following control.

Control name

Control part

•  A/C compressor control
•  Defroster control
•  i-stop control
Climate control unit

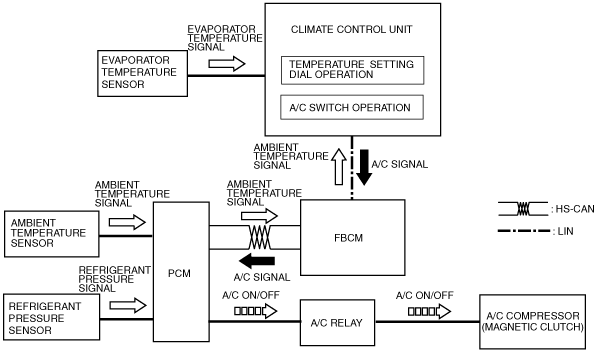

A/C Compressor Control

•  The climate control unit sends the A/C signal to the PCM based on the signals sent from the A/C switch, airflow volume control dial, and evaporator temperature sensor.
•  The PCM turns the A/C relay on/off based on the input signals from the A/C signal and A/C pressure sensor and controls the A/C compressor (magnetic clutch) operation.
ac5wzn00000736

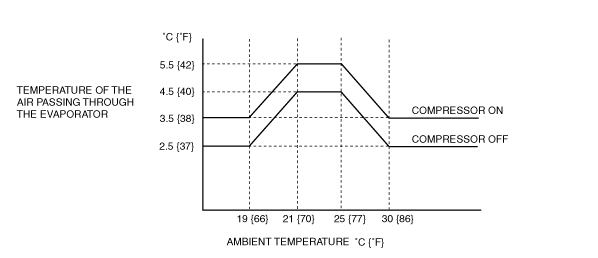

A/C signal on/off control

•  When the A/C switch and fan switch are turned on, the climate control unit turns the A/C signal (magnetic clutch) on/off based on the temperature of the air passing through the evaporator.
•  When the fan switch and A/C switch are turned on, the climate control unit controls the surface temperature of the evaporator so that it is within a certain range to prevent the evaporator from freezing.
•  When the ambient temperature is low, the climate control unit sets the A/C signal (magnetic clutch) off-temperature to low to prevent window fogging.
ac5wzn00000737


Defroster control

•  The defroster control improves the defrosting effect.
•  When the defroster switch turns on, the climate control unit fixes the air intake mode to FRESH.
•  The air intake is fixed at FRESH even if it has been set to REC manually.
