CLIMATE CONTROL UNIT DISASSEMBLY/ASSEMBLY [MANUAL AIR CONDITIONER]
id0740a2802000
1. Disassemble in the order indicated in the figure.
L.H.D.
ac5wzw00001910
|
|
1
|
Dials
|
|
2
|
Airflow mode wire
(See Wire Removal Note.)
(See Wire Installation Note.)
|
|
3
|
Air mix wire
(See Wire Removal Note.)
(See Wire Installation Note.)
|
|
4
|
Fan switch
(See Fan Switch Removal Note.)
|
|
5
|
Climate control unit
(See Clock Removal Note.)
|
R.H.D.
ac5wzw00001911
|
|
1
|
Dials
|
|
2
|
Airflow mode wire
(See Wire Removal Note.)
(See Wire Installation Note.)
|
|
3
|
Air mix wire
(See Wire Removal Note.)
(See Wire Installation Note.)
|
|
4
|
Fan switch
(See Fan Switch Removal Note.)
|
|
5
|
Climate control unit
(See Clock Removal Note.)
|
2. Assemble in the reverse order of disassembly.
Wire Removal Note
1. Remove in the order indicated in the figure.
L.H.D.
ac5wzw00001912
|
R.H.D.
ac5wzw00001913
|
Wire Installation Note
1. Install as shown in the figure.
L.H.D.
ac5wzw00001914
|
R.H.D.
ac5wzw00001915
|
Fan Switch Removal Note
1. Remove the fan switch dial.

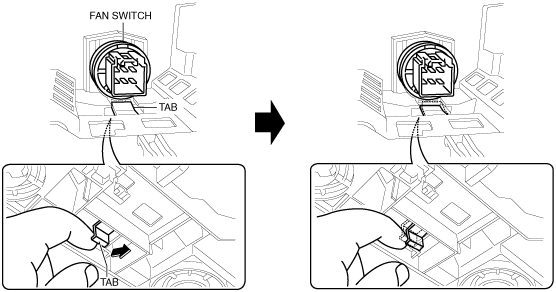

2. Press the tab as shown in the figure.
ac5wzw00001916
|
3. Pull the fan switch outward and remove it with the tab pressed.
ac5wzw00001917
|
Clock Removal Note
1. The clock can be removed from the climate control unit as shown in the figure. Refer to the clock removal/installation for the detailed procedure. (See CLOCK REMOVAL/INSTALLATION.)
ac5wzw00001918
|
