SECURITY INDICATOR LIGHT: 11, DTC: B10D9:87/P1260:00 [IMMOBILIZER SYSTEM]

id0902e4908000

System malfunction location

Coil antenna (built into push button start) error

Detection condition

•  The starter stop unit detected a malfunction in the coil antenna, and remote transmitter communication is not possible.

Fail-safe

—

Possible cause

•  Push button start connector or terminal malfunction

•  Start stop unit connector or terminal malfunction

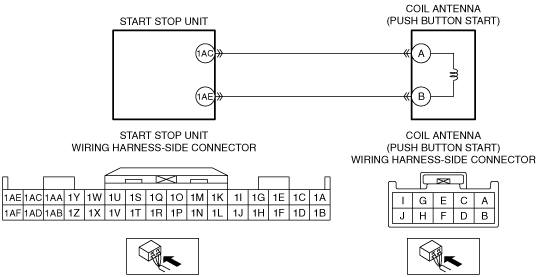

•  Short to ground in wiring harness between the following terminals:

―  Start stop unit terminal 1AC and push button start terminal A

―  Start stop unit terminal 1AE and push button start terminal B

•  Open circuit in wiring harness between the following terminals:

―  Start stop unit terminal 1AC and push button start terminal A

―  Start stop unit terminal 1AE and push button start terminal B

•  Coil antenna malfunction

•  Start stop unit malfunction

System malfunction location	Coil antenna (built into push button start) error
Detection condition	• The starter stop unit detected a malfunction in the coil antenna, and remote transmitter communication is not possible.
Fail-safe	—
Possible cause	• Push button start connector or terminal malfunction • Start stop unit connector or terminal malfunction • Short to ground in wiring harness between the following terminals: ― Start stop unit terminal 1AC and push button start terminal A ― Start stop unit terminal 1AE and push button start terminal B • Open circuit in wiring harness between the following terminals: ― Start stop unit terminal 1AC and push button start terminal A ― Start stop unit terminal 1AE and push button start terminal B • Coil antenna malfunction • Start stop unit malfunction

Diagnostic Procedure

Step	Inspection		Action
1	INSPECT PUSH BUTTON START CONNECTOR CONDITION • Switch the ignition to off. • Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) • Disconnect the push button start connector. • Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection. • Is the connector normal?	Yes	Go to the next step.
1		No	Repair or replace the connector, then go to Step 6.
2	INSPECT START STOP UNIT CONNECTOR CONDITION • Disconnect the start stop unit connector. • Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection. • Is the connector normal?	Yes	Go to the next step.
2		No	Repair or replace the connector, then go to Step 6.
3	INSPECT COIL ANTENNA CIRCUIT FOR SHORT TO GROUND • Verify that the push button start and start stop unit connectors are disconnected. • Inspect for continuity between the following terminals (vehicle wiring harness side) and body ground. ― Push button start terminal A ― Push button start terminal B • Is there continuity?	Yes	Repair or replace the wiring harness which is shorted to ground, then go to Step 6.
3		No	Go to the next step.
4	INSPECT COIL ANTENNA CIRCUIT FOR OPEN CIRCUIT • Verify that the push button start and start stop unit connectors are disconnected. • Inspect the wiring harness between the following terminals (vehicle wiring harness side) for continuity. ― Start stop unit terminal 1AC and push button start terminal A ― Start stop unit terminal 1AE and push button start terminal B • Is there continuity?	Yes	Go to the next step.
4		No	Repair or replace the wiring harness which has an open circuit, then go to Step 6.
5	PERFORM DTC INSPECTION AND VERIFY IF MALFUNCTIONING PART IS COIL ANTENNA • Reconnect all the disconnected connectors. • Remove the ROOM 15 A fuse. • Reconnect the disconnected negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) • Clear DTC for the immobilizer system using the M-MDS. (See CLEARING DTC [IMMOBILIZER SYSTEM].) • Perform the DTC inspection for the immobilizer system using the M-MDS. (See DTC INSPECTION [IMMOBILIZER SYSTEM].) • Security indicator light: 11, DTC B10D9:87/P1260:00 displayed?	Yes	Replace the push button start, then go to the next step. (See PUSH BUTTON START REMOVAL/INSTALLATION.)
5		No	Go to Step 7.
6	VERIFY THAT REPAIRS HAVE BEEN COMPLETED • Reconnect all the disconnected connectors. • Remove the ROOM 15 A fuse. • Reconnect the disconnected negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) • Clear DTC for the immobilizer system using the M-MDS. (See CLEARING DTC [IMMOBILIZER SYSTEM].) • Perform the DTC inspection for the immobilizer system using the M-MDS. (See DTC INSPECTION [IMMOBILIZER SYSTEM].) • Security indicator light: 11, DTC B10D9:87/P1260:00 displayed?	Yes	Repeat the inspection from Step 1. • If the malfunction recurs, replace the start stop unit, then go to the next step. (See START STOP UNIT REMOVAL/INSTALLATION.)
6		No	Go to the next step.
7	VERIFY IF OTHER DTCs DISPLAYED • Are any other DTCs displayed?	Yes	Repair the malfunctioning part according to the applicable DTC troubleshooting. (See DTC TABLE [IMMOBILIZER SYSTEM].)
7		No	DTC troubleshooting completed.
