DTC: U3000:09, 09:Er21 [AUDIO]

id0902f6441600

Without Bose^®

Description

Audio unit internal malfunction

Detection condition

•  Audio unit (circuit around power amplifier) malfunction detected

•  Audio unit protection function operates due to short to ground in speaker wiring harness and speaker lead wire

Fail-safe function

Output to speakers stops

Possible cause

•  Audio unit connector or terminal malfunction

•  Speaker connector or terminal malfunction

•  Open circuit in wiring harness between the following terminals:

―  Audio unit terminal 1A and front door speaker (LH) terminal C

―  Audio unit terminal 1C and front door speaker (LH) terminal B

―  Audio unit terminal 1D and front door speaker (RH) terminal C

―  Audio unit terminal 1F and front door speaker (RH) terminal B

―  Audio unit terminal 1S and rear door speaker (LH) terminal C

―  Audio unit terminal 1U and rear door speaker (LH) terminal B

―  Audio unit terminal 1V and rear door speaker (RH) terminal C

―  Audio unit terminal 1X and rear door speaker (RH) terminal B

•  Short to ground in wiring harness between the following terminals:

―  Audio unit terminal 1A and front door speaker (LH) terminal C

―  Audio unit terminal 1C and front door speaker (LH) terminal B

―  Audio unit terminal 1D and front door speaker (RH) terminal C

―  Audio unit terminal 1F and front door speaker (RH) terminal B

―  Audio unit terminal 1S and rear door speaker (LH) terminal C

―  Audio unit terminal 1U and rear door speaker (LH) terminal B

―  Audio unit terminal 1V and rear door speaker (RH) terminal C

―  Audio unit terminal 1X and rear door speaker (RH) terminal B

•  Speaker malfunction

•  Audio unit malfunction

Description	Audio unit internal malfunction
Detection condition	• Audio unit (circuit around power amplifier) malfunction detected • Audio unit protection function operates due to short to ground in speaker wiring harness and speaker lead wire
Fail-safe function	Output to speakers stops
Possible cause	• Audio unit connector or terminal malfunction • Speaker connector or terminal malfunction • Open circuit in wiring harness between the following terminals: ― Audio unit terminal 1A and front door speaker (LH) terminal C ― Audio unit terminal 1C and front door speaker (LH) terminal B ― Audio unit terminal 1D and front door speaker (RH) terminal C ― Audio unit terminal 1F and front door speaker (RH) terminal B ― Audio unit terminal 1S and rear door speaker (LH) terminal C ― Audio unit terminal 1U and rear door speaker (LH) terminal B ― Audio unit terminal 1V and rear door speaker (RH) terminal C ― Audio unit terminal 1X and rear door speaker (RH) terminal B • Short to ground in wiring harness between the following terminals: ― Audio unit terminal 1A and front door speaker (LH) terminal C ― Audio unit terminal 1C and front door speaker (LH) terminal B ― Audio unit terminal 1D and front door speaker (RH) terminal C ― Audio unit terminal 1F and front door speaker (RH) terminal B ― Audio unit terminal 1S and rear door speaker (LH) terminal C ― Audio unit terminal 1U and rear door speaker (LH) terminal B ― Audio unit terminal 1V and rear door speaker (RH) terminal C ― Audio unit terminal 1X and rear door speaker (RH) terminal B • Speaker malfunction • Audio unit malfunction

Diagnostic Procedure

Step	Inspection		Action
1	INSPECT AUDIO UNIT CONNECTOR CONDITION • Switch the ignition off (LOCK). • Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) • Disconnect the audio unit connector. • Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection. • Is there any malfunctioning part?	Yes	Repair or replace the connector, then go to Step 6.
1		No	Go to the next step.
2	INSPECT SPEAKER CONNECTOR CONDITION • Disconnect the speaker connector. • Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection. • Is there any malfunctioning part?	Yes	Repair or replace the connector, then go to Step 6.
2		No	Go to the next step.
3	INSPECT SPEAKER CIRCUIT FOR OPEN CIRCUIT • Audio unit connector and speaker connector are disconnected. • Inspect for continuity between the following terminals (vehicle wiring harness). ― Audio unit terminal 1A and front door speaker (LH) terminal C ― Audio unit terminal 1C and front door speaker (LH) terminal B ― Audio unit terminal 1D and front door speaker (RH) terminal C ― Audio unit terminal 1F and front door speaker (RH) terminal B ― Audio unit terminal 1S and rear door speaker (LH) terminal C ― Audio unit terminal 1U and rear door speaker (LH) terminal B ― Audio unit terminal 1V and rear door speaker (RH) terminal C ― Audio unit terminal 1X and rear door speaker (RH) terminal B • Is there continuity?	Yes	Go to the next step.
3		No	Repair or replace the wiring harness, then go to Step 6.
4	INSPECT SPEAKER CIRCUIT FOR SHORT TO GROUND • Inspect for continuity between the following wiring harness terminals (vehicle wiring harness side) and body ground. ― Speaker terminal C ― Speaker terminal B • Is there continuity?	Yes	Repair or replace the wiring harness, then go to Step 6.
4		No	Go to the next step.
5	INSPECT SPEAKERS • Inspect the speakers. (See FRONT DOOR SPEAKER INSPECTION.) (See REAR DOOR SPEAKER INSPECTION.) • Is there any malfunctioning part?	Yes	Replace the speaker, then go to Step 6. (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION.) (See REAR DOOR SPEAKER REMOVAL/INSTALLATION.)
5		No	Go to the next step.
6	VERIFY THAT REPAIRS HAVE BEEN COMPLETED • Reconnect all the disconnected connectors. • Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) • Clear the audio unit DTCs. (See CLEARING DTC [AUDIO].) • Perform the audio unit DTC inspection. (See DTC INSPECTION [AUDIO].) • Is the same DTC displayed?	Yes	Return to Step 1 and inspect for other possible causes. If the malfunction recurs, replace the audio unit, then go to the next step. (See AUDIO UNIT REMOVAL/INSTALLATION.)
6		No	Go to the next step.
7	VERIFY IF OTHER DTCs DISPLAYED • Are any other DTCs displayed?	Yes	Repair the malfunctioning part according to the applicable DTC troubleshooting. (See DTC TABLE [AUDIO].)
7		No	DTC troubleshooting completed.

With Bose^®

Description

Audio unit internal malfunction

Detection condition

•  Audio unit (circuit around power amplifier) malfunction detected

•  Audio unit protection function operates due to short to ground in speaker wiring harness and speaker lead wire

Fail-safe function

Output to speakers stops

Possible cause

•  Audio unit connector or terminal malfunction

•  Speaker connector or terminal malfunction

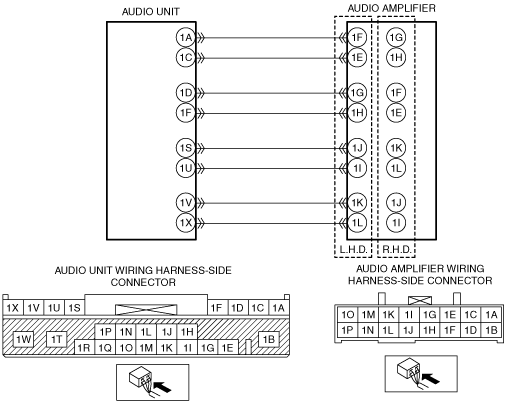

•  Open circuit in wiring harness between the following terminals:

―  Audio unit terminal 1A and audio amplifier terminal 1F (L.H.D.)/ terminal 1G (R.H.D.)

―  Audio unit terminal 1C and audio amplifier terminal 1E (L.H.D.)/ terminal 1H (R.H.D.)

―  Audio unit terminal 1D and audio amplifier terminal 1G (L.H.D.)/ terminal 1F (R.H.D.)

―  Audio unit terminal 1F and audio amplifier terminal 1H (L.H.D.)/ terminal 1E (R.H.D.)

―  Audio unit terminal 1S and audio amplifier terminal 1J (L.H.D.)/ terminal 1K (R.H.D.)

―  Audio unit terminal 1U and audio amplifier terminal 1I (L.H.D.)/ terminal 1L (R.H.D.)

―  Audio unit terminal 1V and audio amplifier terminal 1K (L.H.D.)/ terminal 1J (R.H.D.)

―  Audio unit terminal 1X and audio amplifier terminal 1L (L.H.D.)/ terminal 1I (R.H.D.)

•  Short to ground in wiring harness between the following terminals:

―  Audio unit terminal 1A and audio amplifier terminal 1F (L.H.D.)/ terminal 1G (R.H.D.)

―  Audio unit terminal 1C and audio amplifier terminal 1E (L.H.D.)/ terminal 1H (R.H.D.)

―  Audio unit terminal 1D and audio amplifier terminal 1G (L.H.D.)/ terminal 1F (R.H.D.)

―  Audio unit terminal 1F and audio amplifier terminal 1H (L.H.D.)/ terminal 1E (R.H.D.)

―  Audio unit terminal 1S and audio amplifier terminal 1J (L.H.D.)/ terminal 1K (R.H.D.)

―  Audio unit terminal 1U and audio amplifier terminal 1I (L.H.D.)/ terminal 1L (R.H.D.)

―  Audio unit terminal 1V and audio amplifier terminal 1K (L.H.D.)/ terminal 1J (R.H.D.)

―  Audio unit terminal 1X and audio amplifier terminal 1L (L.H.D.)/ terminal 1I (R.H.D.)

•  Speaker malfunction

•  Audio unit malfunction

Description	Audio unit internal malfunction
Detection condition	• Audio unit (circuit around power amplifier) malfunction detected • Audio unit protection function operates due to short to ground in speaker wiring harness and speaker lead wire
Fail-safe function	Output to speakers stops
Possible cause	• Audio unit connector or terminal malfunction • Speaker connector or terminal malfunction • Open circuit in wiring harness between the following terminals: ― Audio unit terminal 1A and audio amplifier terminal 1F (L.H.D.)/ terminal 1G (R.H.D.) ― Audio unit terminal 1C and audio amplifier terminal 1E (L.H.D.)/ terminal 1H (R.H.D.) ― Audio unit terminal 1D and audio amplifier terminal 1G (L.H.D.)/ terminal 1F (R.H.D.) ― Audio unit terminal 1F and audio amplifier terminal 1H (L.H.D.)/ terminal 1E (R.H.D.) ― Audio unit terminal 1S and audio amplifier terminal 1J (L.H.D.)/ terminal 1K (R.H.D.) ― Audio unit terminal 1U and audio amplifier terminal 1I (L.H.D.)/ terminal 1L (R.H.D.) ― Audio unit terminal 1V and audio amplifier terminal 1K (L.H.D.)/ terminal 1J (R.H.D.) ― Audio unit terminal 1X and audio amplifier terminal 1L (L.H.D.)/ terminal 1I (R.H.D.) • Short to ground in wiring harness between the following terminals: ― Audio unit terminal 1A and audio amplifier terminal 1F (L.H.D.)/ terminal 1G (R.H.D.) ― Audio unit terminal 1C and audio amplifier terminal 1E (L.H.D.)/ terminal 1H (R.H.D.) ― Audio unit terminal 1D and audio amplifier terminal 1G (L.H.D.)/ terminal 1F (R.H.D.) ― Audio unit terminal 1F and audio amplifier terminal 1H (L.H.D.)/ terminal 1E (R.H.D.) ― Audio unit terminal 1S and audio amplifier terminal 1J (L.H.D.)/ terminal 1K (R.H.D.) ― Audio unit terminal 1U and audio amplifier terminal 1I (L.H.D.)/ terminal 1L (R.H.D.) ― Audio unit terminal 1V and audio amplifier terminal 1K (L.H.D.)/ terminal 1J (R.H.D.) ― Audio unit terminal 1X and audio amplifier terminal 1L (L.H.D.)/ terminal 1I (R.H.D.) • Speaker malfunction • Audio unit malfunction

Diagnostic Procedure

Step	Inspection		Action
1	INSPECT AUDIO UNIT CONNECTOR CONDITION • Switch the ignition off (LOCK). • Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) • Disconnect the audio unit connector. • Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection. • Is there any malfunctioning part?	Yes	Repair or replace the connector, then go to Step 5.
1		No	Go to the next step.
2	INSPECT AUDIO AMPLIFIER CONNECTOR CONDITION • Disconnect the audio amplifier connector. • Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection. • Is there any malfunctioning part?	Yes	Repair or replace the connector, then go to Step 5.
2		No	Go to the next step.
3	INSPECT AUDIO AMPLIFIER CIRCUIT FOR OPEN CIRCUIT • Audio unit connector and audio amplifier connector are disconnected. • Inspect for continuity between the following terminals (vehicle wiring harness). ― Audio unit terminal 1A and audio amplifier terminal 1F (L.H.D.)/ terminal 1G (R.H.D.) ― Audio unit terminal 1C and audio amplifier terminal 1E (L.H.D.)/ terminal 1H (R.H.D.) ― Audio unit terminal 1D and audio amplifier terminal 1G (L.H.D.)/ terminal 1F (R.H.D.) ― Audio unit terminal 1F and audio amplifier terminal 1H (L.H.D.)/ terminal 1E (R.H.D.) ― Audio unit terminal 1S and audio amplifier terminal 1J (L.H.D.)/ terminal 1K (R.H.D.) ― Audio unit terminal 1U and audio amplifier terminal 1I (L.H.D.)/ terminal 1L (R.H.D.) ― Audio unit terminal 1V and audio amplifier terminal 1K (L.H.D.)/ terminal 1J (R.H.D.) ― Audio unit terminal 1X and audio amplifier terminal 1L (L.H.D.)/ terminal 1I (R.H.D.) • Is there continuity?	Yes	Go to the next step.
3		No	Repair or replace the wiring harness, then go to Step 5.
4	INSPECT AUDIO AMPLIFIER CIRCUIT FOR SHORT TO GROUND • Inspect for continuity between the following wiring harness terminals (vehicle wiring harness side) and body ground. ― Audio amplifier terminal 1F (L.H.D.)/ terminal 1G (R.H.D.) ― Audio amplifier terminal 1E (L.H.D.)/ terminal 1H (R.H.D.) ― Audio amplifier terminal 1G (L.H.D.)/ terminal 1F (R.H.D.) ― Audio amplifier terminal 1H (L.H.D.)/ terminal 1E (R.H.D.) ― Audio amplifier terminal 1J (L.H.D.)/ terminal 1K (R.H.D.) ― Audio amplifier terminal 1I (L.H.D.)/ terminal 1L (R.H.D.) ― Audio amplifier terminal 1K (L.H.D.)/ terminal 1J (R.H.D.) ― Audio amplifier terminal 1L (L.H.D.)/ terminal 1I (R.H.D.) • Is there continuity?	Yes	Repair or replace the wiring harness, then go to Step 5.
4		No	Go to the next step.
5	VERIFY THAT REPAIRS HAVE BEEN COMPLETED • Reconnect all the disconnected connectors. • Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) • Clear the audio unit DTCs. (See CLEARING DTC [AUDIO].) • Perform the audio unit DTC inspection. (See DTC INSPECTION [AUDIO].) • Is the same DTC displayed?	Yes	Return to Step 1 and inspect for other possible causes. If the malfunction recurs, replace the audio unit, then go to the next step. (See AUDIO UNIT REMOVAL/INSTALLATION.)
5		No	Go to the next step.
6	VERIFY IF OTHER DTCs DISPLAYED • Are any other DTCs displayed?	Yes	Repair the malfunctioning part according to the applicable DTC troubleshooting. (See DTC TABLE [AUDIO].)
6		No	DTC troubleshooting completed.
