DTC: U0197:00/26:Er81 [Bluetooth SYSTEM (HANDS-FREE TELEPHONE (HF/TEL) SYSTEM)]
id0902g8408200
|
Description |
• U0197:00: Communication error with audio unit
• 26:Er81: CAN system communication error
|
|---|---|
|
Detection condition
|
CAN signal is not sent from Bluetooth unit
|
|
Fail-safe function
|
Not applicable
|
|
Possible cause
|

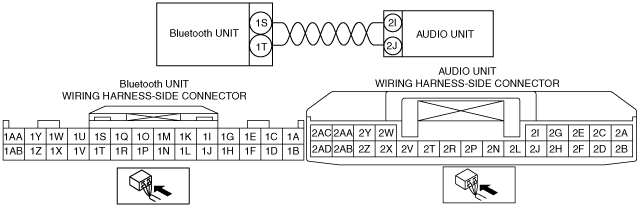

• Short in wiring harness between Bluetooth unit and audio unit, short to power supply, short or open circuit to ground
• Audio unit malfunction
• Bluetooth unit malfunction
|
 |
|
Diagnostic Procedure
|
Step |
Inspection |
Action |
|
|---|---|---|---|
|
1
|
INSPECT FOR SHORT BETWEEN CAN CIRCUITS
• Remove the glove compartment.
• Switch the ignition ON (engine off or on).
• Measure the voltage between the following terminals:
• Are the measured voltage values between the 2 terminals the same?
|
Yes
|
Go to the next step.
|
|
No
|
Go to Step 4.
|
||
|
2
|
DETERMINE IF SHORT OCCURRING BETWEEN LINES IS IN AUDIO UNIT
• Switch the ignition off (LOCK).
• Disconnect the negative battery cable.
• Remove the audio unit.
• Disconnect the audio unit connector.
• Connect the negative battery cable.
• Switch the ignition ON (engine off or on).
• Measure the voltage between the following terminals:
• Are the measured voltage values between the 2 terminals the same?
|
Yes
|
Go to the next step.
|
|
No
|
Replace the audio unit because there is a short between circuits in the audio unit.
After replacement, go to Step 13.
|
||
|
3
|
DETERMINE IF SHORT OCCURRING BETWEEN LINES IS IN BLUETOOTH UNIT
• Switch the ignition off (LOCK).
• Disconnect the negative battery cable.
• Remove the Bluetooth unit.
• Disconnect the Bluetooth unit connector.
• Connect the negative battery cable.
• Switch the ignition ON (engine off or on).
• Measure the voltage between the following terminals:
• Are the measured voltage values between the 2 terminals the same?
|
Yes
|
Repair or replace the wiring harness between the audio unit and the Bluetooth unit because the wiring harness is shorted between circuits, then go to Step 13.
|
|
No
|
Replace the Bluetooth unit because there is a short between circuits in the Bluetooth unit.
After replacement, go to Step 13.
|
||
|
4
|
INSPECT FOR SHORT TO POWER SUPPLY IN CAN CIRCUIT
• Measure the voltage between the following terminals:
• Can B+ voltage be measured?
|
Yes
|
Go to the next step.
|
|
No
|
Go to Step 7.
|
||
|
5
|
DETERMINE IF SHORT TO POWER SUPPLY IS OCCURRING IN AUDIO UNIT
• Switch the ignition off (LOCK).
• Disconnect the negative battery cable.
• Remove the audio unit.
• Disconnect the audio unit connector.
• Connect the negative battery cable.
• Switch the ignition ON (engine off or on).
• Measure the voltage between the following terminals:
• Can B+ voltage be measured?
|
Yes
|
Go to the next step.
|
|
No
|
Replace the audio unit because there is a short to the power supply in the audio unit.
After replacement, go to Step 13.
|
||
|
6
|
DETERMINE IF SHORT TO POWER IS OCCURRING IN BLUETOOTH UNIT
• Switch the ignition off (LOCK).
• Disconnect the negative battery cable.
• Remove the Bluetooth unit.
• Disconnect the Bluetooth unit connector.
• Connect the negative battery cable.
• Switch the ignition ON (engine off or on).
• Measure the voltage between the following terminals:
• Can B+ voltage be measured?
|
Yes
|
Repair or replace the wiring harness between the audio unit and the Bluetooth unit because the wiring harness is shorted to the power supply, then go to Step 13.
|
|
No
|
Replace the Bluetooth unit because there is a short to the power supply in the Bluetooth unit.
After replacement, go to Step 13.
|
||
|
7
|
INSPECT FOR SHORT TO GROUND IN CAN CIRCUIT
• Switch the ignition off (LOCK).
• Disconnect the negative battery cable.
• Inspect for continuity between the following terminals:
• Is there continuity?
|
Yes
|
Go to the next step.
|
|
No
|
Go to Step 10.
|
||
|
8
|
DETERMINE IF SHORT TO GROUND IS OCCURRING IN AUDIO UNIT
• Remove the audio unit.
• Disconnect the audio unit connector.
• Inspect for continuity between the following terminals:
• Is there continuity?
|
Yes
|
Go to the next step.
|
|
No
|
Replace the audio unit because there is a short to ground inside the unit.
After replacement, go to Step 13.
|
||
|
9
|
DETERMINE IF SHORT TO GROUND IS OCCURRING IN BLUETOOTH UNIT
• Remove the Bluetooth unit.
• Disconnect the Bluetooth unit connector.
• Inspect for continuity between the following terminals:
• Is there continuity?
|
Yes
|
Repair or replace the wiring harness between the audio unit and the Bluetooth unit because the wiring harness is shorted to ground, then go to Step 13.
|
|
No
|
Replace the Bluetooth unit because there is a short to ground inside the unit.
After replacement, go to Step 13.
|
||
|
10
|
INSPECT CAN CIRCUIT FOR OPEN CIRCUIT
• Remove the audio unit.
• Disconnect the audio unit connector.
• Remove the Bluetooth unit.
• Disconnect the Bluetooth unit connector.
• Inspect for continuity between the following terminals:
• Is there continuity?
|
Yes
|
Go to the next step.
|
|
No
|
Go to Step 13.
|
||
|
11
|
INSPECT AUDIO UNIT RESISTANCE
• Inspect the resistance between the audio unit terminal 2I and terminal 2J (part side).
• Is the resistance 118―130 Ω?
|
Yes
|
Go to the next step.
|
|
No
|
Replace the audio unit.
After replacement, go to Step 13.
|
||
|
12
|
INSPECT BLUETOOTH UNIT RESISTANCE
• Inspect the resistance between Bluetooth unit terminals S and T (part side).
• Is the resistance 118―130 Ω?
|
Yes
|
Go to the next step.
|
|
No
|
Replace the Bluetooth unit.
After replacement, go to the next step.
|
||
|
13
|
VERIFY THAT REPAIRS HAVE BEEN COMPLETED
• Connect all the connectors.
• Perform an inspection of the Bluetooth unit DTCs.
• Is the same DTC displayed?
|
Yes
|
Return to Step 1 and inspect for other possible causes. If the malfunction recurs, replace the Bluetooth unit, then go to the next step.
|
|
No
|
Go to the next step.
|
||
|
14
|
VERIFY IF OTHER DTCs DISPLAYED
• Are any other DTCs displayed?
|
Yes
|
Repair the malfunctioning part according to the applicable DTC troubleshooting.
|
|
No
|
DTC troubleshooting completed.
|
||
