DTC U3003:16 [BLIND SPOT MONITORING (BSM)]

id0902i3394000

System malfunction location

BSM control module low power supply voltage input (less than 9 V)

Detection condition

•  BSM control module power supply voltage of less than 9 V is detected for 10 s or more.

Fail-safe

•  BSM is stopped.

Possible cause

•  DTCs are stored in the PCM.

•  Battery malfunction

•  Generator malfunction

•  Malfunction in BSM control module (LH) connector or terminal

•  Malfunction in BSM control module (RH) connector or terminal

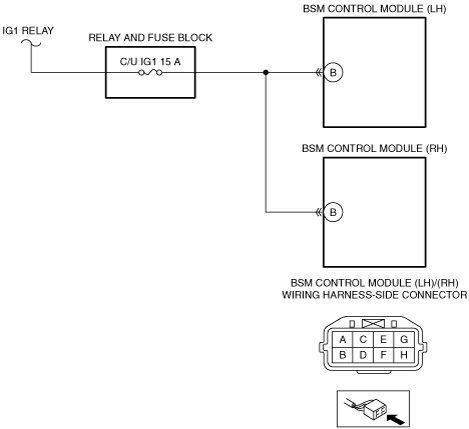

•  BSM control module power supply circuit malfunction

―  Short to ground in wiring harness between C/U IG1 15 A fuse and BSM control module terminal B

―  C/U IG1 15 A fuse malfunction

―  Open circuit in wiring harness between IG1 relay and BSM control module terminal B

•  BSM control module malfunction

System malfunction location	BSM control module low power supply voltage input (less than 9 V)
Detection condition	• BSM control module power supply voltage of less than 9 V is detected for 10 s or more.
Fail-safe	• BSM is stopped.
Possible cause	• DTCs are stored in the PCM. • Battery malfunction • Generator malfunction • Malfunction in BSM control module (LH) connector or terminal • Malfunction in BSM control module (RH) connector or terminal • BSM control module power supply circuit malfunction ― Short to ground in wiring harness between C/U IG1 15 A fuse and BSM control module terminal B ― C/U IG1 15 A fuse malfunction ― Open circuit in wiring harness between IG1 relay and BSM control module terminal B • BSM control module malfunction

Diagnostic Procedure

Step	Inspection		Action
1	VERIFY PCM DTCs • Perform the DTC inspection for the PCM using the M-MDS. (See ON-BOARD DIAGNOSTIC TEST [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See ON-BOARD DIAGNOSTIC TEST [SKYACTIV-D 2.2].) • Is the DTC displayed?	Yes	Repair the malfunctioning part according to the applicable DTC troubleshooting. (See DTC TABLE [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See DTC TABLE [SKYACTIV-D 2.2].)
1		No	Go to the next step.
2	INSPECT BATTERY • Inspect the battery. (See BATTERY INSPECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See BATTERY INSPECTION [SKYACTIV-D 2.2].) • Is the battery normal?	Yes	Go to the next step.
2		No	Recharge or replace the battery, then go to Step 7. (See BATTERY RECHARGING [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See BATTERY RECHARGING [SKYACTIV-D 2.2].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
3	INSPECT GENERATOR • Inspect the generator. (See GENERATOR INSPECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See GENERATOR INSPECTION [SKYACTIV-D 2.2].) • Is the generator normal?	Yes	Go to the next step.
3		No	Replace the generator, then go to Step 7. (See GENERATOR REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See GENERATOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
4	INSPECT BSM CONTROL MODULE (LH) CONNECTOR CONDITION • Switch the ignition to off. • Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) • Disconnect the BSM control module (LH) connector. • Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection. • Is the connector normal?	Yes	Go to the next step.
4		No	Repair or replace the connector, then go to Step 7.
5	INSPECT BSM CONTROL MODULE (RH) CONNECTOR CONDITION • Disconnect the BSM control module (RH) connector. • Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection. • Is the connector normal?	Yes	Go to the next step.
5		No	Repair or replace the connector, then go to Step 7.
6	VERIFY BSM CONTROL MODULE POWER SUPPLY VOLTAGE • Reconnect all the disconnected connectors. • Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) • Display PID VPWR_IG1 using the M-MDS. (See PID/DATA MONITOR INSPECTION [BLIND SPOT MONITORING (BSM)].) • Is the voltage B+?	Yes	Go to the next step.
6		No	Inspect the C/U IG1 15 A fuse. • If a fuse is burnt out: ― Repair or replace the wiring harness which is shorted to ground. ― Replace the fuse. • If a fuse is damaged: ― Replace the fuse. • If the fuse is normal: ― Repair or replace the wiring harness which has an open circuit. Go to the next step.
7	VERIFY THAT REPAIRS HAVE BEEN COMPLETED • Reconnect all the disconnected connectors. • Reconnect the disconnected negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) • Clear BSM control module DTCs using the M-MDS. (See CLEARING DTC [BLIND SPOT MONITORING (BSM)].) • Switch the ignition ON (engine off or on) and wait for 10 s or more. • Perform the DTC inspection for the BSM control module using the M-MDS. (See DTC INSPECTION [BLIND SPOT MONITORING (BSM)].) • Is DTC U3003:16 displayed?	Yes	Repeat the inspection from Step 1. • If the malfunction recurs, replace the BSM control module, then go to the next step. (See BLIND SPOT MONITORING (BSM) CONTROL MODULE REMOVAL/INSTALLATION.)
7		No	Go to the next step.
8	VERIFY IF OTHER DTCs DISPLAYED • Are any other DTCs displayed?	Yes	Repair the malfunctioning part according to the applicable DTC troubleshooting. (See DTC TABLE [BLIND SPOT MONITORING (BSM)].)
8		No	DTC troubleshooting completed.
