DTC B13FE:12 [FRONT BODY CONTROL MODULE (FBCM)]
id0902p2008800
System malfunction location |
Headlight LO relay (RH) circuit malfunction |
---|---|
Detection condition
|
• The front body control module (FBCM) detects a short to power supply in the headlight LO relay (RH) circuit with the ignition switched ON (engine off or on).
|
Fail-safe
|
—
|
Possible cause
|
• Headlight LO relay (RH) malfunction
• Front body control module (FBCM) connector or terminal malfunction

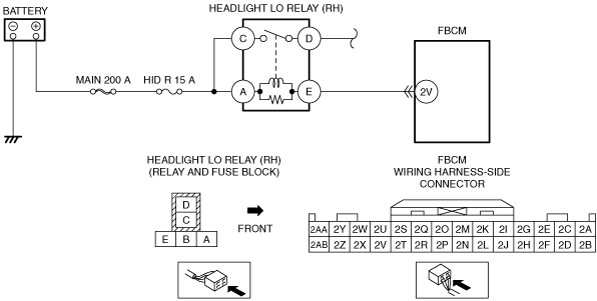

• Short to power supply in the wiring harness between headlight LO relay (RH) terminal E and front body control module (FBCM) terminal 2V
• Front body control module (FBCM) malfunction
|
![]() |
Diagnostic Procedure
Step |
Inspection |
Action |
|
---|---|---|---|
1
|
VERIFY FRONT BODY CONTROL MODULE (FBCM) DTCs AGAIN
• Clear front body control module (FBCM) DTCs using the M-MDS.
• Switch the ignition ON (engine off or on).
• Perform the front body control module (FBCM) DTC inspection using the M-MDS.
• Is DTC B13FE:12 displayed?
|
Yes
|
Go to the next step.
|
No
|
Go to Step 6.
|
||
2
|
INSPECT HEADLIGHT LO RELAY (RH) FOR MALFUNCTION
• Switch the ignition to off.
• Disconnect the negative battery cable.
• Remove the headlight LO relay (RH).
• Inspect the headlight LO relay (RH).
(See RELAY INSPECTION.)
• Is the headlight LO relay (RH) normal?
|
Yes
|
Go to the next step.
|
No
|
Replace the headlight LO relay (RH), then go to Step 5.
|
||
3
|
INSPECT FRONT BODY CONTROL MODULE (FBCM) CONNECTOR CONDITION
• Disconnect the front body control module (FBCM) connector.
• Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection.
• Is the connector normal?
|
Yes
|
Go to the next step.
|
No
|
Repair or replace the connector, then go to Step 5.
|
||
4
|
INSPECT HEADLIGHT LO RELAY (RH) CONTROL CIRCUIT FOR SHORT TO POWER SUPPLY
• Verify that the headlight LO relay (RH) is removed.
• Verify that the front body control module (FBCM) connector is disconnected.
• Connect the negative battery cable.
• Switch the ignition ON (engine off or on).
• Operate the light switch in HEAD position.
• Measure the voltage at FCBCM terminal 2V (vehicle wiring harness side).
• Is the voltage 0 V?
|
Yes
|
Go to the next step.
|
No
|
Repair or replace the wiring harness and go to the next step.
|
||
5
|
VERIFY THAT REPAIRS HAVE BEEN COMPLETED
• Reconnect all the disconnected connectors.
• Reconnect the disconnected negative battery cable.
• Clear front body control module (FBCM) DTCs using the M-MDS.
• Switch the ignition ON (engine off or on).
• Perform the front body control module (FBCM) DTC inspection using the M-MDS.
• Is DTC B13FE:12 displayed?
|
Yes
|
Repeat the inspection from Step 1.
• If the malfunction recurs, replace the front body control module (FBCM), then go to the next step.
|
No
|
Go to the next step.
|
||
6
|
VERIFY IF OTHER DTCs DISPLAYED
• Are any other DTCs displayed?
|
Yes
|
Repair the malfunctioning part according to the applicable DTC troubleshooting.
|
No
|
DTC troubleshooting completed.
|
