ON-BOARD DIAGNOSTIC WIRING DIAGRAM [REAR BODY CONTROL MODULE (RBCM)]

id0902p4012300

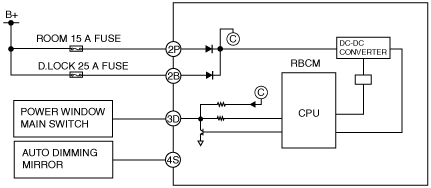

Power window system, Auto dimming mirror

ac5wzn00001492

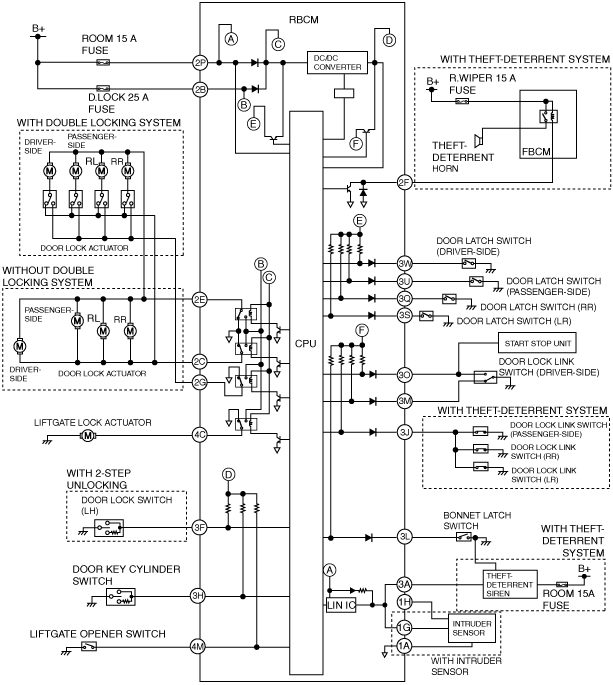

Power door lock system, theft-deterrent system

ac5wzn00001825

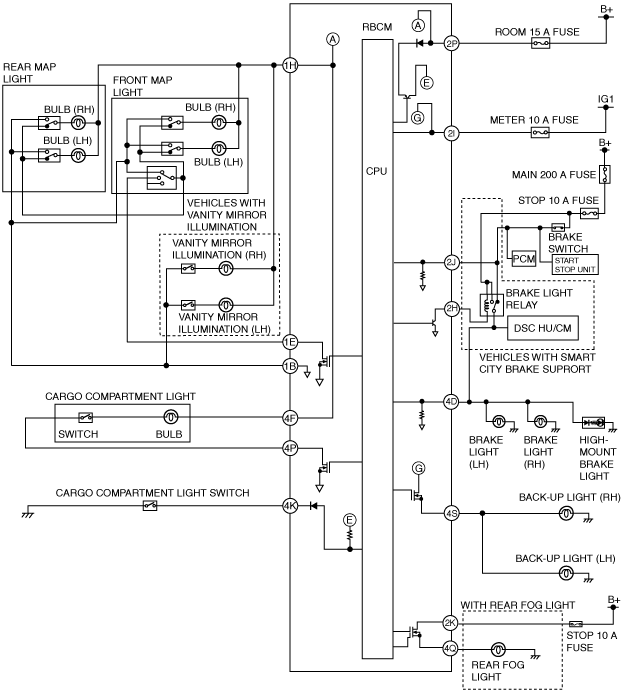

Room lights, brake light, rear fog light system

ac5wzn00000973

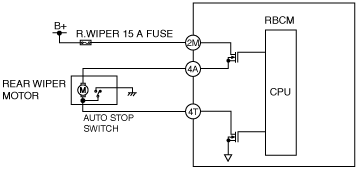

Rear wiper system

ac5uun00000314

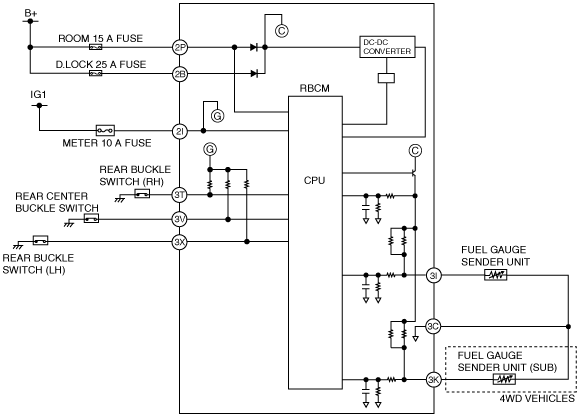

Fuel-level sensor, rear seat belt reminder system

ac5wzn00000974

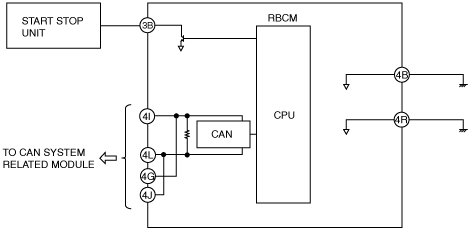

CAN system

ac5wzn00001065
