DTC P0615:13 [START STOP UNIT]
id0902p6022200

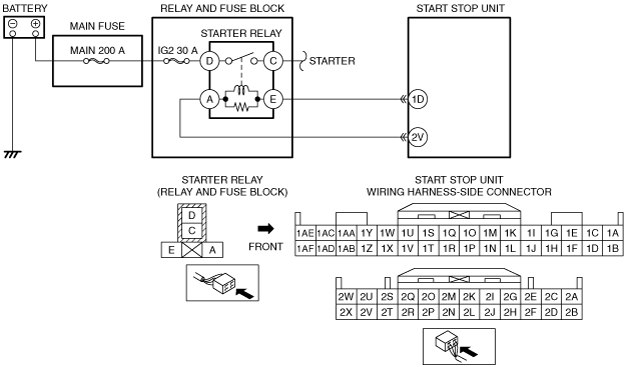

System malfunction location |
Starter relay circuit malfunction |
---|---|
Detection condition
|
• The start stop unit detects an open circuit in the starter relay circuit for 1 s or more with the ignition switched off.
|
Fail-safe
|
—
|
Possible cause
|
• Disconnect the start stop unit with the battery cables connected.
• Starter relay malfunction
• Start stop unit connector or terminal malfunction
• Open circuit in wiring harness between the following terminals:
• Start stop unit malfunction
|
![]() |
Diagnostic Procedure
Step |
Inspection |
Action |
|
---|---|---|---|
1
|
INSPECT STARTER RELAY FOR MALFUNCTION
• Switch the ignition to off.
• Disconnect the negative battery cable.
• Remove the starter relay.
(See RELAY LOCATION.)
• Inspect the starter relay.
(See RELAY INSPECTION.)
• Is the starter relay normal?
|
Go to the next step.
|
|
No
|
Replace the starter relay, then go to Step 4.
(See RELAY LOCATION.)
|
||
2
|
INSPECT START STOP UNIT CONNECTOR CONDITION
• Disconnect the start stop unit connector.
• Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection.
• Is the connector normal?
|
Yes
|
Go to the next step.
|
No
|
Repair or replace the connector, then go to Step 4.
|
||
3
|
INSPECT STARTER RELAY CIRCUIT FOR OPEN CIRCUIT
• Verify that the starter relay is removed.
• Verify that the start stop unit connector is disconnected.
• Inspect the wiring harness between the following terminals (vehicle wiring harness side) for continuity.
• Is there continuity?
|
Yes
|
Go to the next step.
|
No
|
Repair or replace the wiring harness which has an open circuit, then go to the next step.
|
||
4
|
VERIFY THAT REPAIRS HAVE BEEN COMPLETED
• Reconnect all the disconnected connectors.
• Reconnect the disconnected negative battery cable.
• Clear DTC for the start stop unit using the M-MDS.
• Switch the ignition to off and wait for 1 s or more.
• Perform the DTC inspection for the start stop unit using the M-MDS.
• Is DTC P0615:13 displayed?
|
Yes
|
Repeat the inspection from Step 1.
• If the malfunction recurs, replace the start stop unit, then go to the next step.
|
No
|
Go to the next step.
|
||
5
|
VERIFY IF OTHER DTCs DISPLAYED
• Are any other DTCs displayed?
|
Yes
|
Repair the malfunctioning part according to the applicable DTC troubleshooting.
(See DTC TABLE [START STOP UNIT].)
|
No
|
DTC troubleshooting completed.
|
