DTC U201F:12 [START STOP UNIT]


id0902p6024400

System malfunction location

Keyless receiver circuit malfunction

Detection condition
•  Start stop unit detects keyless receiver circuit voltage of 6.2 V or more for 0.5 s or more.
Fail-safe
Possible cause
•  Keyless receiver connector or terminal malfunction
•  Start stop unit connector or terminal malfunction

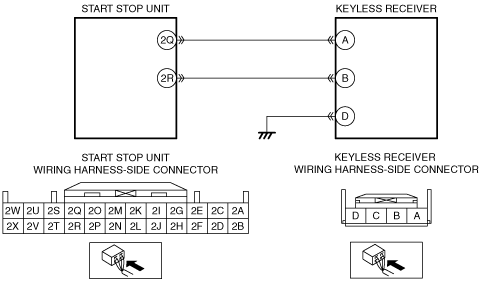

•  Short to power supply in wiring harness between start stop unit terminal 2Q and keyless receiver terminal A
•  Keyless receiver malfunction
•  Start stop unit malfunction

Diagnostic Procedure

Step

Inspection

Action

1
INSPECT KEYLESS RECEIVER CONNECTOR CONDITION
•  Switch the ignition to off.
•  Disconnect the keyless receiver connector
•  Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection.
•  Is the connector normal?
Yes
Go to the next step.
No
Repair or replace the connector, then go to Step 5.
2
INSPECT START STOP UNIT CONNECTOR CONDITION
•  Disconnect the start stop unit connector.
•  Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection.
•  Is the connector normal?
Yes
Go to the next step.
No
Repair or replace the connector, then go to Step 5.
3
INSPECT KEYLESS RECEIVER CIRCUIT FOR SHORT TO POWER SUPPLY
•  Reconnect the start stop unit connector.
•  Verify that the keyless receiver connector is disconnected.
•  Switch the ignition ON (engine off or on).
•  Measure the voltage at the following terminals (vehicle wiring harness side).
―  Keyless receiver terminal A
―  Start stop unit terminal 2Q
•  Is the voltage 0 V?
Yes
Go to the next step.
No
Repair or replace the wiring harness which is shorted to power supply, then go to Step 5.
4
INSPECT KEYLESS RECEIVER
•  Inspect the keyless receiver.
•  Is the keyless receiver normal?
Yes
Go to the next step.
No
Replace the keyless receiver, then go to the next step.
5
VERIFY THAT REPAIRS HAVE BEEN COMPLETED
•  Reconnect all the disconnected connectors.
•  Clear DTC for the start stop unit using the M-MDS.
•  Switch the ignition ON (engine off or on) and wait for 0.5 s or more.
•  Perform the DTC inspection for the start stop unit using the M-MDS.
•  Is DTC U201F:12 displayed?
Yes
Repeat the inspection from Step 1.
•  If the malfunction recurs, replace the start stop unit, then go to the next step.
No
Go to the next step.
6
VERIFY IF OTHER DTCs DISPLAYED
•  Are any other DTCs displayed?
Yes
Repair the malfunctioning part according to the applicable DTC troubleshooting.
No
DTC troubleshooting completed.
