DTC B11CB:11 [REAR VEHICLE MONITORING SYSTEM]

id0902z2886200

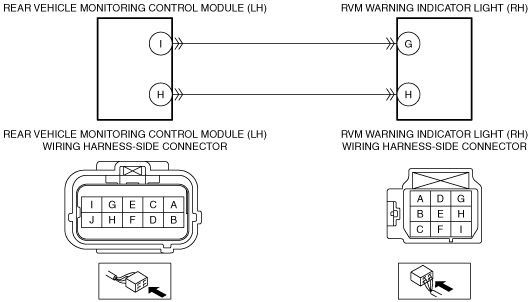

Rear Vehicle Monitoring Control Module Connector 10-pin Type

System malfunction location

RVM warning indicator light (RH) circuit malfunction

Detection condition

•  Rear vehicle monitoring control module (LH) detects short to ground in RVM warning indicator light (RH).

Fail-safe

•  Inhibits the rear vehicle monitoring system.

Possible cause

•  RVM warning indicator light (RH) connector or terminal malfunction

•  Rear vehicle monitoring control module (LH) connector or terminal malfunction

•  Short to ground in wiring harness between the following terminals:

―  Rear vehicle monitoring control module (LH) terminal I and RVM warning indicator light (RH) terminal G

―  Rear vehicle monitoring control module (LH) terminal H and RVM warning indicator light (RH) terminal H

•  RVM warning indicator light (RH) malfunction

•  Rear vehicle monitoring control module (LH) malfunction

System malfunction location	RVM warning indicator light (RH) circuit malfunction
Detection condition	• Rear vehicle monitoring control module (LH) detects short to ground in RVM warning indicator light (RH).
Fail-safe	• Inhibits the rear vehicle monitoring system.
Possible cause	• RVM warning indicator light (RH) connector or terminal malfunction • Rear vehicle monitoring control module (LH) connector or terminal malfunction • Short to ground in wiring harness between the following terminals: ― Rear vehicle monitoring control module (LH) terminal I and RVM warning indicator light (RH) terminal G ― Rear vehicle monitoring control module (LH) terminal H and RVM warning indicator light (RH) terminal H • RVM warning indicator light (RH) malfunction • Rear vehicle monitoring control module (LH) malfunction

Diagnostic Procedure

Step	Inspection		Action
1	INSPECT RVM WARNING INDICATOR LIGHT (RH) CONNECTOR • Switch the ignition to off. • Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) • Disconnect the RVM warning indicator light (RH) connector. • Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection. • Is the connector normal?	Yes	Go to the next step.
1		No	Repair or replace the connector, then go to Step 5.
2	INSPECT REAR VEHICLE MONITORING CONTROL MODULE (LH) CONNECTOR • Disconnect the rear vehicle monitoring control module (LH) connector. • Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection. • Is the connector normal?	Yes	Go to the next step.
2		No	Repair or replace the connector, then go to Step 5.
3	INSPECT RVM WARNING INDICATOR LIGHT (RH) CIRCUIT FOR SHORT TO GROUND • Verify that the rear vehicle monitoring control module (LH) connector and RVM warning indicator light (RH) connector are disconnected. • Inspect for continuity between the following terminals (vehicle wiring harness side) and body ground. ― RVM warning indicator light (RH) terminal G ― RVM warning indicator light (RH) terminal H • Is there continuity?	Yes	Repair or replace the wiring harness which is shorted to ground, then go to Step 5.
3		No	Go to the next step.
4	INSPECT RVM WARNING INDICATOR LIGHT (RH) • Inspect the RVM warning indicator light (RH). (See RVM WARNING INDICATOR LIGHT INSPECTION.) • Is the RVM warning indicator light (RH) normal?	Yes	Go to the next step.
4		No	Replace the RVM warning indicator light (RH), then go to the next step. (See RVM WARNING INDICATOR LIGHT REMOVAL/INSTALLATION.)
5	VERIFY THAT REPAIRS HAVE BEEN COMPLETED • Reconnect all the disconnected connectors. • Reconnect the disconnected negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) • Clear the DTC for the rear vehicle monitoring control module using the M-MDS. (See CLEARING DTC [REAR VEHICLE MONITORING SYSTEM].) • Illuminate the RVM warning indicator light (RH) using the simulation item WRN_IND_R. (See ACTIVE COMMAND MODES INSPECTION [REAR VEHICLE MONITORING SYSTEM].) • Perform the DTC inspection for the rear vehicle monitoring control module using the M-MDS. (See DTC INSPECTION [REAR VEHICLE MONITORING SYSTEM].) • Is DTC B11CB:11 displayed?	Yes	Repeat the inspection from Step 1. • If the malfunction recurs, replace the rear vehicle monitoring control module (LH), then go to the next step. (See REAR VEHICLE MONITORING CONTROL MODULE REMOVAL/INSTALLATION.)
5		No	Go to the next step.
6	VERIFY IF OTHER DTCs DISPLAYED • Are any other DTCs displayed?	Yes	Repair the malfunctioning part according to the applicable DTC troubleshooting. (See DTC TABLE [REAR VEHICLE MONITORING SYSTEM].)
6		No	DTC troubleshooting completed.

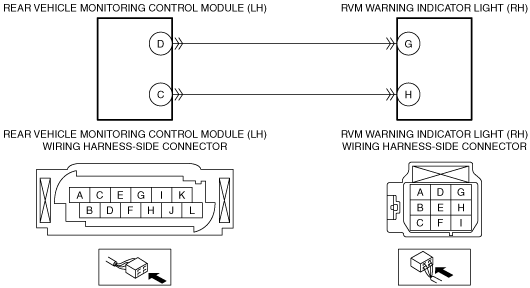

Rear Vehicle Monitoring Control Module Connector 12-pin Type

System malfunction location

RVM warning indicator light (RH) circuit malfunction

Detection condition

•  Rear vehicle monitoring control module (LH) detects short to ground in RVM warning indicator light (RH).

Fail-safe

•  Inhibits the rear vehicle monitoring system.

Possible cause

•  RVM warning indicator light (RH) connector or terminal malfunction

•  Rear vehicle monitoring control module (LH) connector or terminal malfunction

•  Short to ground in wiring harness between the following terminals:

―  Rear vehicle monitoring control module (LH) terminal D and RVM warning indicator light (RH) terminal G

―  Rear vehicle monitoring control module (LH) terminal C and RVM warning indicator light (RH) terminal H

•  RVM warning indicator light (RH) malfunction

•  Rear vehicle monitoring control module (LH) malfunction

System malfunction location	RVM warning indicator light (RH) circuit malfunction
Detection condition	• Rear vehicle monitoring control module (LH) detects short to ground in RVM warning indicator light (RH).
Fail-safe	• Inhibits the rear vehicle monitoring system.
Possible cause	• RVM warning indicator light (RH) connector or terminal malfunction • Rear vehicle monitoring control module (LH) connector or terminal malfunction • Short to ground in wiring harness between the following terminals: ― Rear vehicle monitoring control module (LH) terminal D and RVM warning indicator light (RH) terminal G ― Rear vehicle monitoring control module (LH) terminal C and RVM warning indicator light (RH) terminal H • RVM warning indicator light (RH) malfunction • Rear vehicle monitoring control module (LH) malfunction

Diagnostic Procedure

Step	Inspection		Action
1	INSPECT RVM WARNING INDICATOR LIGHT (RH) CONNECTOR • Switch the ignition to off. • Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) • Disconnect the RVM warning indicator light (RH) connector. • Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection. • Is the connector normal?	Yes	Go to the next step.
1		No	Repair or replace the connector, then go to Step 5.
2	INSPECT REAR VEHICLE MONITORING CONTROL MODULE (LH) CONNECTOR • Disconnect the rear vehicle monitoring control module (LH) connector. • Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection. • Is the connector normal?	Yes	Go to the next step.
2		No	Repair or replace the connector, then go to Step 5.
3	INSPECT RVM WARNING INDICATOR LIGHT (RH) CIRCUIT FOR SHORT TO GROUND • Verify that the rear vehicle monitoring control module (LH) connector and RVM warning indicator light (RH) connector are disconnected. • Inspect for continuity between the following terminals (vehicle wiring harness side) and body ground. ― RVM warning indicator light (RH) terminal G ― RVM warning indicator light (RH) terminal H • Is there continuity?	Yes	Repair or replace the wiring harness which is shorted to ground, then go to Step 5.
3		No	Go to the next step.
4	INSPECT RVM WARNING INDICATOR LIGHT (RH) • Inspect the RVM warning indicator light (RH). (See RVM WARNING INDICATOR LIGHT INSPECTION.) • Is the RVM warning indicator light (RH) normal?	Yes	Go to the next step.
4		No	Replace the RVM warning indicator light (RH), then go to the next step. (See RVM WARNING INDICATOR LIGHT REMOVAL/INSTALLATION.)
5	VERIFY THAT REPAIRS HAVE BEEN COMPLETED • Reconnect all the disconnected connectors. • Reconnect the disconnected negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].) • Clear the DTC for the rear vehicle monitoring control module using the M-MDS. (See CLEARING DTC [REAR VEHICLE MONITORING SYSTEM].) • Illuminate the RVM warning indicator light (RH) using the simulation item WRN_IND_R. (See ACTIVE COMMAND MODES INSPECTION [REAR VEHICLE MONITORING SYSTEM].) • Perform the DTC inspection for the rear vehicle monitoring control module using the M-MDS. (See DTC INSPECTION [REAR VEHICLE MONITORING SYSTEM].) • Is DTC B11CB:11 displayed?	Yes	Repeat the inspection from Step 1. • If the malfunction recurs, replace the rear vehicle monitoring control module (LH), then go to the next step. (See REAR VEHICLE MONITORING CONTROL MODULE REMOVAL/INSTALLATION.)
5		No	Go to the next step.
6	VERIFY IF OTHER DTCs DISPLAYED • Are any other DTCs displayed?	Yes	Repair the malfunctioning part according to the applicable DTC troubleshooting. (See DTC TABLE [REAR VEHICLE MONITORING SYSTEM].)
6		No	DTC troubleshooting completed.
