TROUBLESHOOTING INDEX [RADIO]

id0903e3801000

Symptom		Possible DTC
		Using the M-MDS	Without using M-MDS (On-board diagnostic test mode)
NO RADIO RECEPTION (AM/FM)/NO OR LOW VOLUME [RADIO]		U3003:16, U3000:04	09:Er20, 09:Er22
NOISE FROM RADIO (AM ONLY) [RADIO]		U3000:04	09:Er22
NOISE FROM RADIO (FM ONLY) [RADIO]		U3000:04	09:Er22
CANNOT TUNE (SEEK DOES NOT STOP) [RADIO]		U3003:16, U3000:04	09:Er20, 09:Er22
CANNOT PRESET (PRESET FUNCTION DOES NOT OPERATE) [RADIO]		—	—
RECEPTION FREQUENCY OF RADIO SLIPS [RADIO]		U3000:04	09:Er22

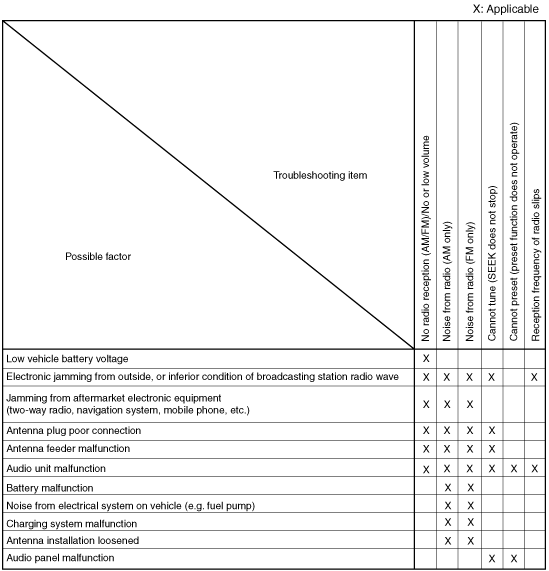

Quick Diagnostic Chart

ac5wzw00002517
