TROUBLESHOOTING INDEX [Bluetooth SYSTEM (HANDS-FREE TELEPHONE (HF/TEL) SYSTEM)]

id0903h5845000

Symptom		Possible DTC
		Using the M-MDS	Without using M-MDS (On-board diagnostic test mode)
HANDS-FREE TELEPHONE SYSTEM DOES NOT RECEIVE/TRANSMIT CALLS, DOES NOT CONNECT [Bluetooth SYSTEM (HANDS-FREE TELEPHONE (HF/TEL) SYSTEM)]		B116A:12, B116A:13, B116A:44	26:Er81, 26:Er82, 26:Er86
CALLER'S VOICE VOLUME TOO LOW, OR NOISE INTERRUPTS CALL [Bluetooth SYSTEM (HANDS-FREE TELEPHONE (HF/TEL) SYSTEM)]		—	26:Er81
ADDRESSEE'S VOICE VOLUME TOO LOW, OR NOISE INTERRUPTS CALL [Bluetooth SYSTEM (HANDS-FREE TELEPHONE (HF/TEL) SYSTEM)]		—	26:Er81

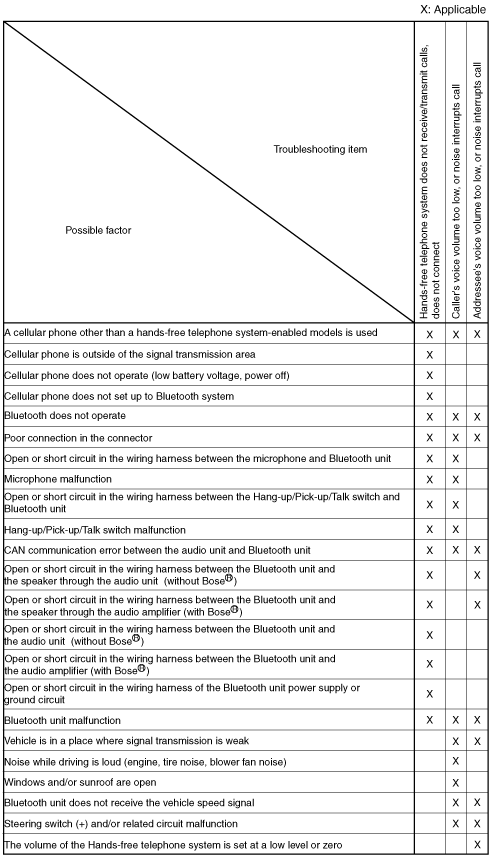

Quick Diagnostic Chart

ac5wzw00002951
