TROUBLESHOOTING INDEX [CD PLAYER]

id0903k3801000

Troubleshooting Index

Items		Symptom	Possible DTC
			Using the M-MDS	Without using M-MDS (On-board diagnostic test mode)
CD player		CD PLAYER DOES NOT LOAD THE CD OR EJECTS THE CD IMMEDIATELY [CD PLAYER]	B1D19:79	10:Er01
		CD PLAYER DOES NOT EJECT THE CD [CD PLAYER]	B1D19:79	10:Er01
		CD PLAYER DOES NOT PLAY THE CD/NO SOUND [CD PLAYER]	B1188:64	10:Er07
		SOUND JUMPS [CD PLAYER]	B1188:64	10:Er07
		CD PLAYER SCRATCHES ON THE CD [CD PLAYER]	B1188:64	10:Er07
CD player (MP3/WMA formatted file payback function)		CD PLAYER DOES NOT PLAY THE MP3/WMA-FORMATTED FILE [CD PLAYER]	B1188:64	10:Er07
		MP3/WMA-FORMATTED FILE FOLDER SELECTION IS INOPERATIVE/TRACK SEARCH IS INOPERATIVE [CD PLAYER]	B1D19:71	10:Er02
		CD PLAYER DOES NOT INDICATE THE MP3/WMA TITLE TEXT [CD PLAYER]	B1D19:71, B1188:64	10:Er02, 10:Er07
		CD PLAYER DOES NOT PLAY THE AUDIO DATA (CDDA) [CD PLAYER]	B1D19:71, B1188:64	10:Er02, 10:Er07
CD player		TRACK CHANGE IS INOPERATIVE [CD PLAYER]	B1D19:71	10:Er02

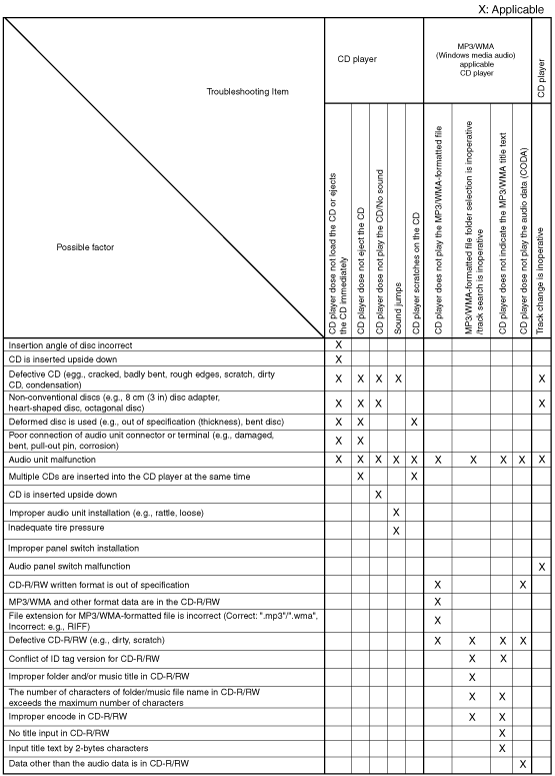

Quick Diagnostic Chart

ac5wzw00002519
