FRONT BUMPER DISASSEMBLY/ASSEMBLY

id091000800400


Servicing Pointers

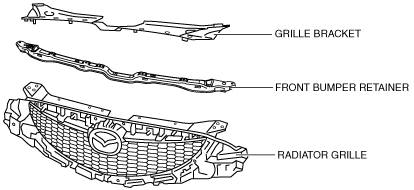

•  Type A and B grille brackets, front bumper retainers, and radiator grilles are available depending on the vehicle’s period of manufacture.
ac5uuw00003369

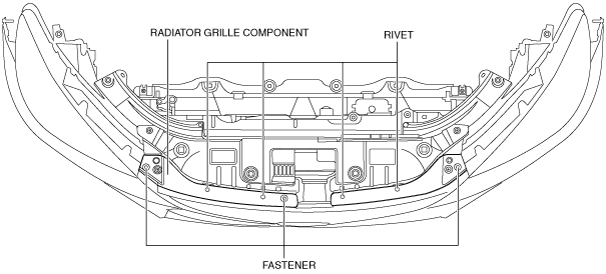

Type A
―  The grille bracket is installed to the radiator grille using three fasteners and four rivets.
ac5uuw00003370

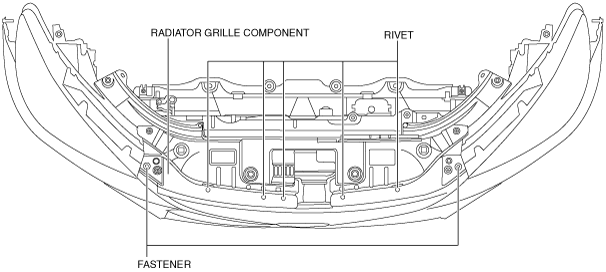

Type B
―  The grille bracket is installed to the radiator grille using two fasteners and five rivets.
ac5uuw00003371
•  The type A grille bracket, front bumper retainer, and radiator grille are no longer produced.
•  Because the diameter of the rivet for types A and B differs, the grille bracket, front bumper retainer, and radiator grille for type B cannot be installed to the grille bracket, front bumper retainer, and radiator grille for type A.

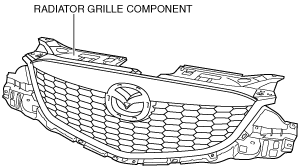

•  When replacing the grille bracket, front bumper retainer, and radiator grille for type A with a new one, replace as a single radiator grille component.
ac5uuw00003372
•  The radiator grille component consists of the following:
―  Grille bracket
―  Front bumper retainer
―  Radiator grille
―  Upper grille
―  Lower grille molding

Disassembly/Assembly

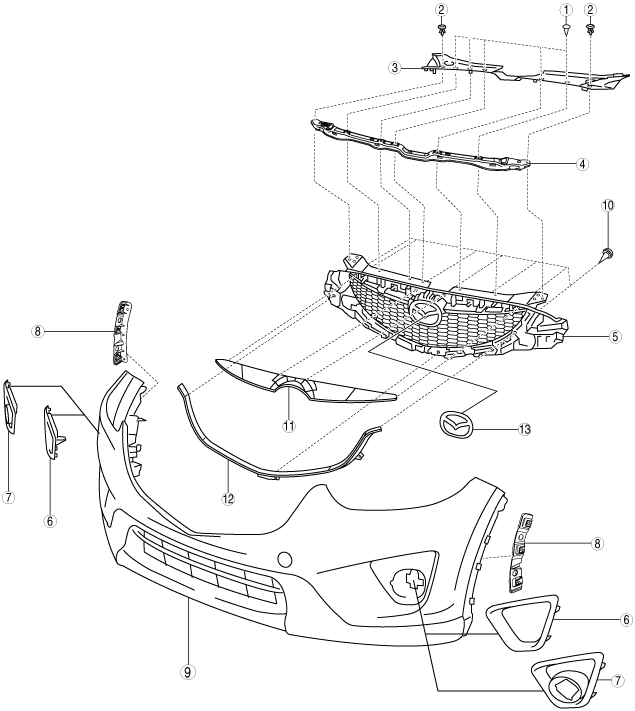

1.  Disassemble in the order indicated in the table.

ac5jjw00006124

1
Rivet
2
Fastener
3
Grille bracket
4
Front bumper retainer
5
Radiator grille
6
Front fog light hole cover (without front fog lights)
7
Front fog light hole cover (with front fog lights)
8
Bracket
9
Front bumper
10
Screw
11
Upper grille
12
Lower grille molding
13
Ornament

2.  Assemble in the reverse order of disassembly.
