REAR OVER FENDER REMOVAL/INSTALLATION


id091000878800

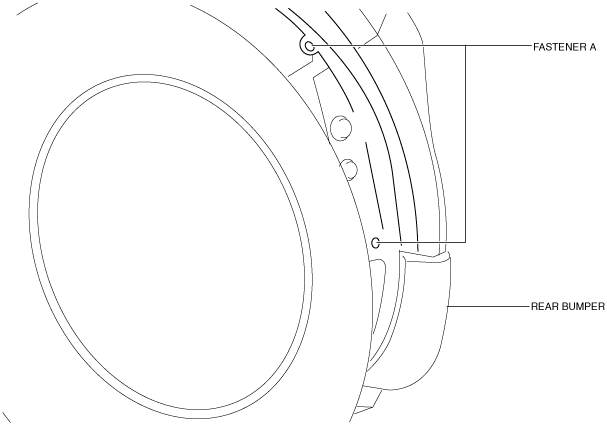

1.  Remove fasteners A.

ac5wzw00001174

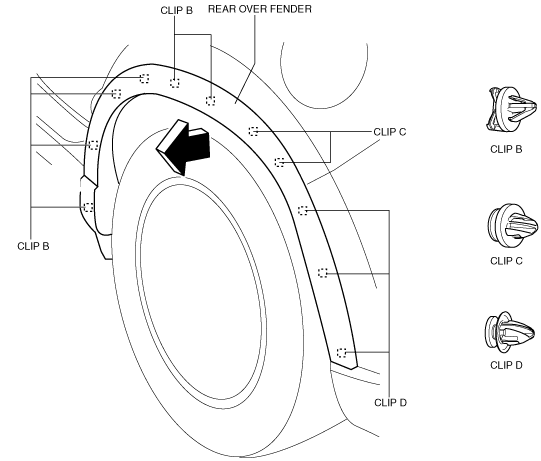

2.  Pull the rear over fender in the direction of the arrow (2) while removing clips B, C and D.

ac5wzw00003179

3.  Install in the reverse order of removal.

Warning
•  When installing the rear over fender, verify that clips B, C, D are not damaged, if they are damaged, replace them with new ones. Otherwise, the rear over fender may fall off while the vehicle is being driven, leading to a serious accident.
