GLASS/WINDOWS/MIRRORS
id091200012000
Outline
• The following window glass has been adopted.
-
― Windshield
― Front door glass
― Rear door glass
― Rear door quarter glass
― Quarter window glass
― Rear window glass
― Outer mirror glass
• The following mirrors have been adopted.
-
― Power outer mirror
― Rearview mirror
― Auto-dimming mirror (With auto-dimming mirror)
• Rear window defroster has been adopted on the rear window glass.
• Heated outer mirror has been adopted on the power outer mirrors. (With heated outer mirror system)
• An auto-dimming mirror has been adopted on the rearview mirror. (With auto-dimming mirror)
• UV protection glass has been adopted. (With UV protection glass)
Specification
• Glass is thinner for weight reduction.
-
― Windshield: 4.5 mm {0.18 in}
― Front door glass: 4.0 mm {0.16 in}
― Rear door glass: 3.5 mm {0.14 in}
― Rear door quarter glass: 3.1 mm {0.12 in}
― Quarter window glass: 2.8 mm {0.11 in}
― Rear window glass: 2.8 mm {0.11 in}

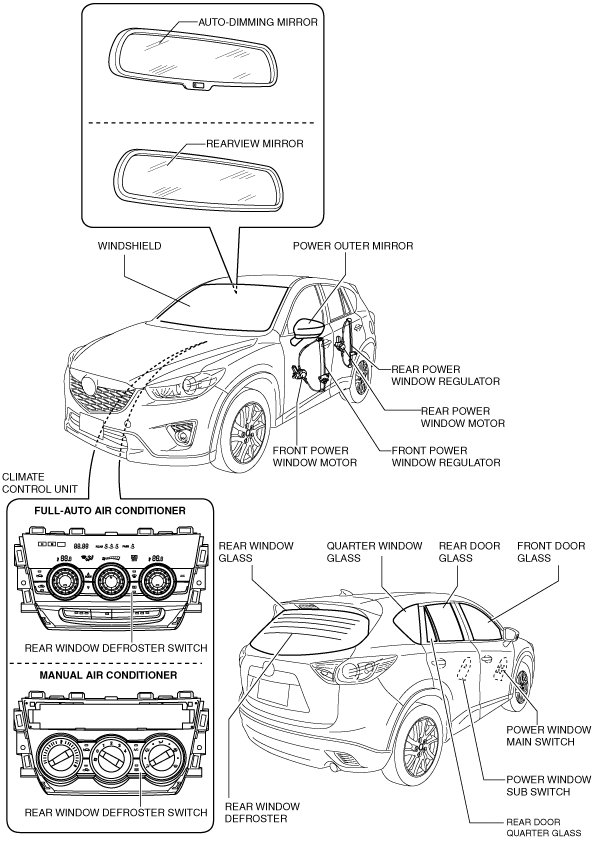

Structural view
