REAR WINDOW DEFROSTER/OUTER MIRROR HEATER

id091200012100

Outline

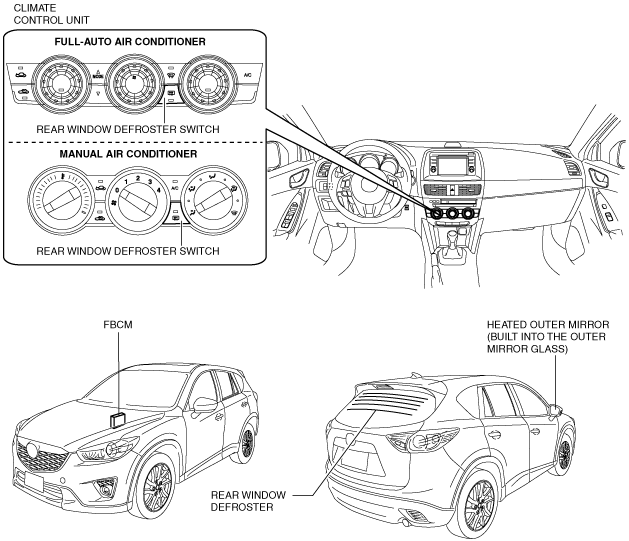

Structural view

ac5wzn00002663

System wiring diagram

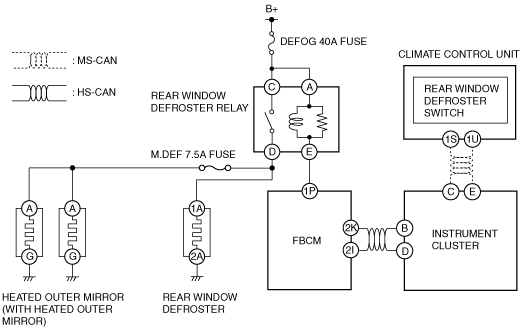

With full-auto air conditioner system

ac5wzn00002664

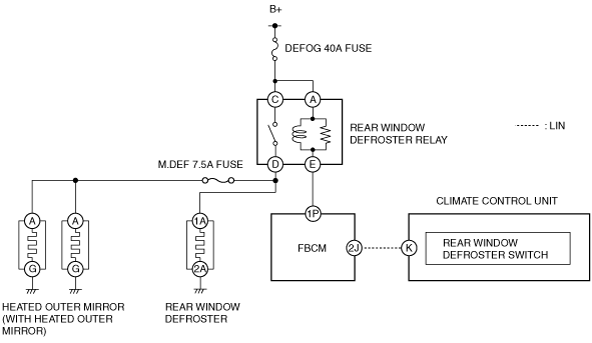

With manual air conditioner system

ac5wzn00002665

Construction

Rear window defroster

•  The rear window defroster is inside the rear window glass.

ac5wzn00002666

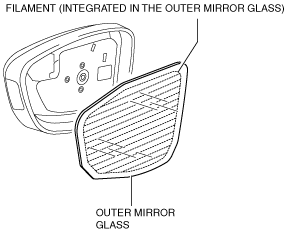

Heated outer mirror

•  The heated outer mirror filament is integrated in the outer mirror glass.

ac5wzn00000294

Operation

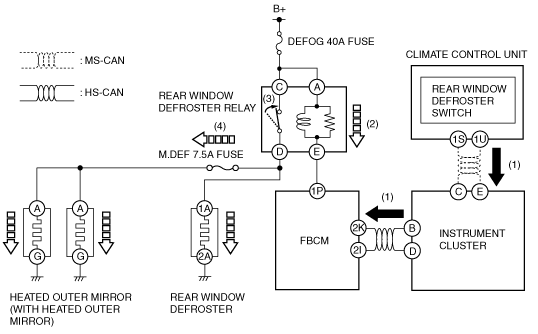

With full-auto air conditioner system

1.  When the rear window defroster switch on the climate control unit is turned on, an ON/OFF control request signal is sent to the front body control module (FBCM) through the instrument cluster as a CAN signal.

2.  When the front body control module (FBCM) receives the ON/OFF control request signal, it supplies the battery voltage to the rear window defroster relay.

3.  When the battery voltage is supplied to the rear window defroster relay, a switch inside the rear window defroster relay is turned on.

4.  When the switch inside the rear window defroster relay is turned on, the battery voltage is supplied to the rear window defroster/heated outer mirrors to operate them.

ac5wzn00002667

•  When approx. 15 min. has elapsed after the rear window defroster switch was turned on, the timer control of the front body control module (FBCM) turns off the rear window defroster relay automatically to turn off the rear window defroster/heated outer mirror.

•  When the rear window defroster switch is pressed while the rear window defroster/heated outer mirrors are operating, they stop operating.

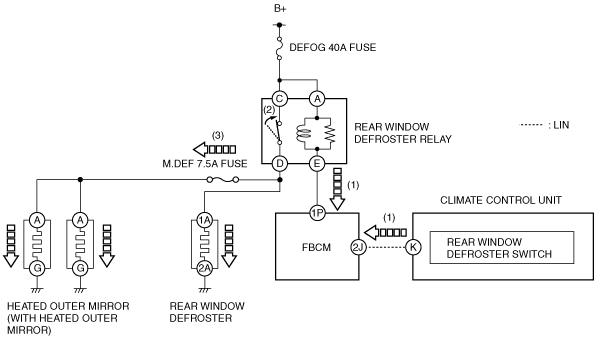

With manual air conditioner system

1.  When the rear window defroster switch on the climate control unit is turned on, a signal is sent from the climate control unit to the front body control module (FBCM) and the battery voltage is supplied to the rear window defroster relay.

2.  When the battery voltage is supplied to the rear window defroster relay, a switch inside the rear window defroster relay is turned on.

3.  When the switch inside the rear window defroster relay is turned on, the battery voltage is supplied to the rear window defroster/heated outer mirrors to operate them.

ac5wzn00002668

•  When approx. 15 min. has elapsed after the rear window defroster switch was turned on, the timer control of the front body control module (FBCM) turns off the rear window defroster relay automatically to turn off the rear window defroster/heated outer mirror.

•  When the rear window defroster switch is pressed while the rear window defroster/heated outer mirrors are operating, they stop operating.

Fail-safe
