POWER WINDOW SYSTEM


id091200012200


Outline

•  A power window system that enables automatic opening/closing of the door glass has been adopted.
•  The driver's side door glass can be opened/closed automatically or manually by operating the power window main switch.
•  All the door glass can be opened/closed automatically or manually by operating the power window main switch and the power window sub switches.

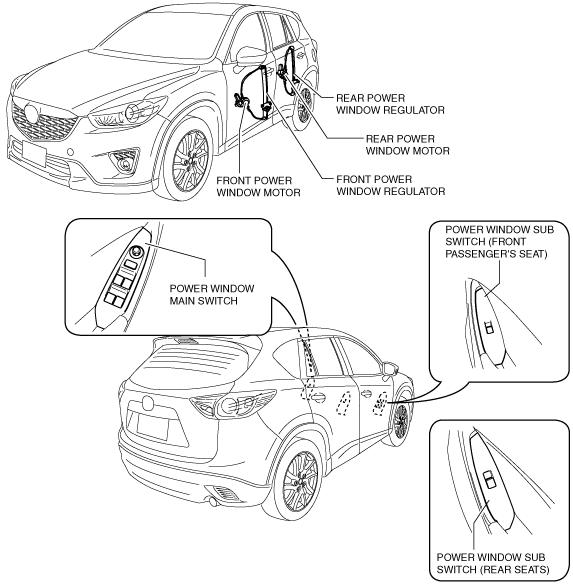

Structural view

L.H.D.

ac5wzn00001224

R.H.D.

ac5wzn00001225

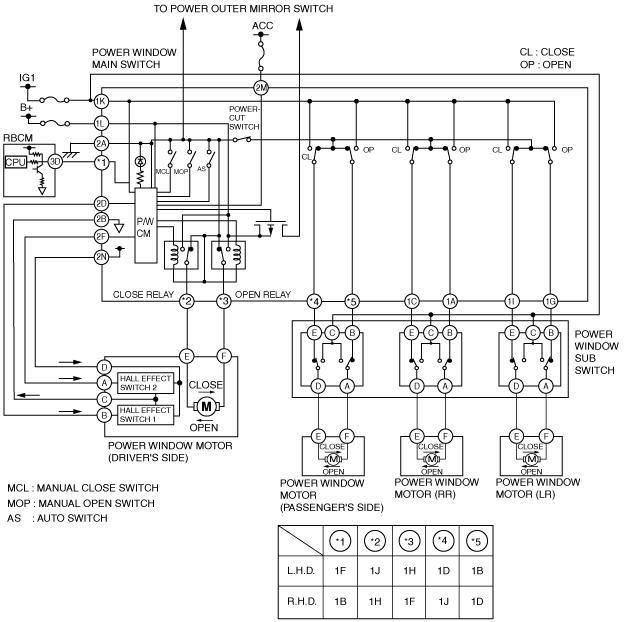

System wiring diagram


With driver’s side window auto open/close

ac5wzn00001098


With all window auto open/close

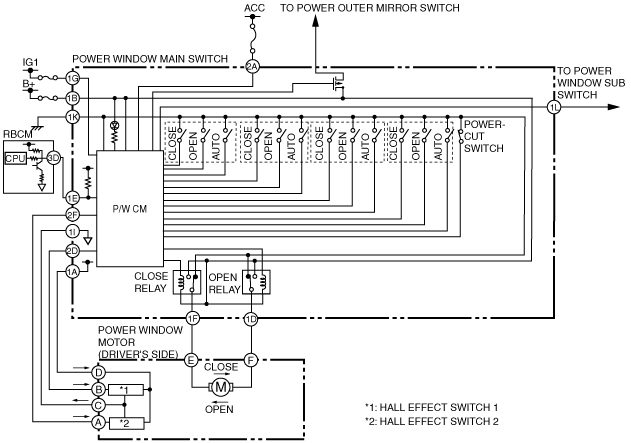

Power window main switch

ac5wzn00001036

Power window subswitch

ac5wzn00000315


Function

Driver's seat
•  Manual Open/Close
―  When the power window main switch is operated using the manual operation, the door glass opens/closes manually.
•  Auto Open/Close
―  When the power window main switch is operated using the auto operation, the door glass opens/closes automatically.
•  Power Window System Initial Setting
―  Records the position of the driver's side door glass.
•  Auto Reverse Pinch Protection Function
―  If an obstruction by a foreign object is detected during the auto close operation, the operation changes from close to open.
•  IG OFF Timer Function
―  The driver's side power window can be operated using the power window main switch for approx. 40 s after the ignition is switched from ON (engine on or off) to ACC or OFF.
•  IG OFF timer cancel
―  The IG OFF timer is canceled when approx. 40 s or more have elapsed since the ignition was switched to ACC or OFF or any door is opened during IG OFF timer operation.
Front passenger's seat and rear seats
•  Manual Open/Close
―  When the power window main switch or power window subswitches is operated using the manual operation, the door glass opens/closes manually.
•  Auto Open/Close (With all window auto open/close)
―  When the power window main switch or power window subswitches is operated using the auto operation, the door glass opens/closes automatically.
•  IG OFF Timer Function
―  The front passenger’s seat and rear seats power window can be operated using the power window subswitches for approx. 40 s after the ignition is switched from ON (engine on or off) to ACC or OFF.
•  IG OFF timer cancel
―  The IG OFF timer is canceled when approx. 40 s or more have elapsed since the ignition was switched to ACC or OFF or any door is opened during IG OFF timer operation.

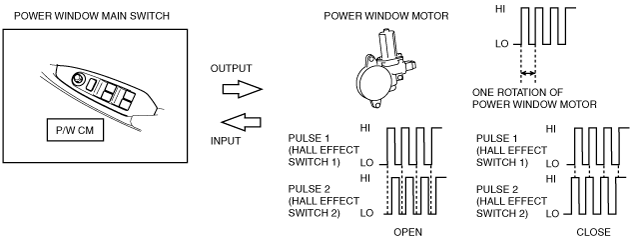

Construction

•  A P/W CM is integrated in the power window main switch.
•  The P/W CM controls the power window system based on the pulse signals from the power window motor.
ac5wzn00001099

Operation

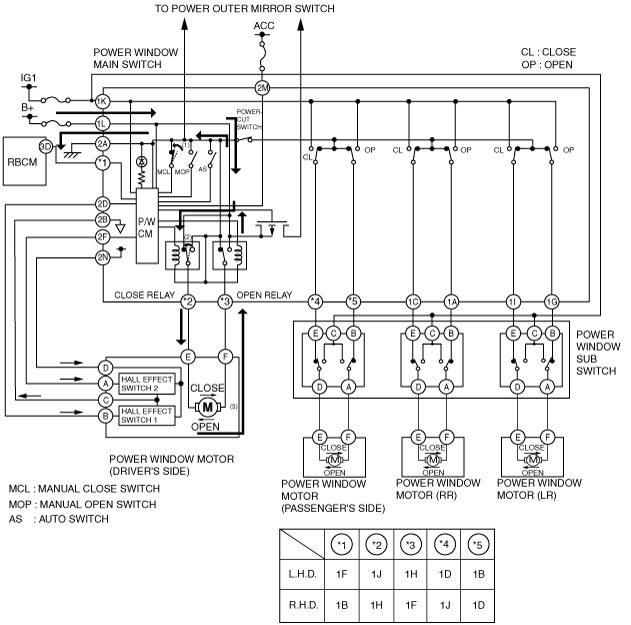

Driver's side manual open/close operation (Example: close operation)

1.  When the power window main switch is operated for manual close operation, the P/W CM receives a manual close signal. (1)

2.  When the P/W CM receives a manual close signal, it turns on the close relay. (2)

3.  When the close relay is turned on, the power window motor (RF) starts manual close operation.(3)

With driver's side window auto open/close

ac5wzn00001100

With all window auto open/close

ac5wzn00001037

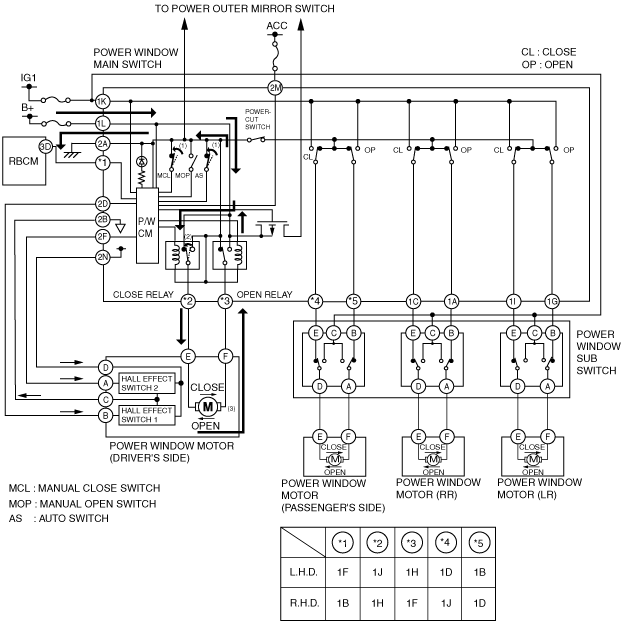

Driver's side auto open/close operation (Example: close operation)

1.  When the power window main switch is operated for auto close operation, the P/W CM receives an auto close signal. (1)

2.  When the P/W CM receives an auto close signal, it turns on the close relay. (2)

3.  When the close relay is turned on, the power window motor (RF) starts auto close operation.(3)

With driver's side window auto open/close

ac5wzn00001101

With all window auto open/close

ac5wzn00001038

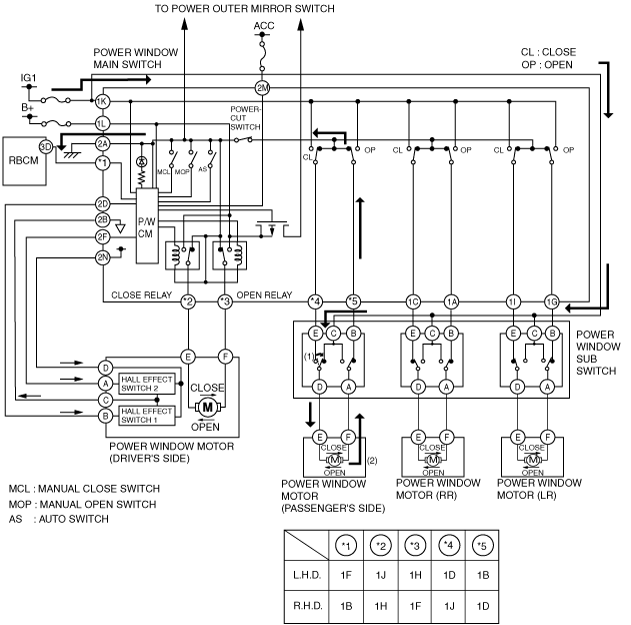

Passenger's side and rear side manual open/close operation (With driver's side window auto open/close) (Example: Passenger's side close operation)

1.  When the power window subswitch is operated for manual close operation, the power window motor (LF) starts manual close operation.(2)

ac5wzn00001102

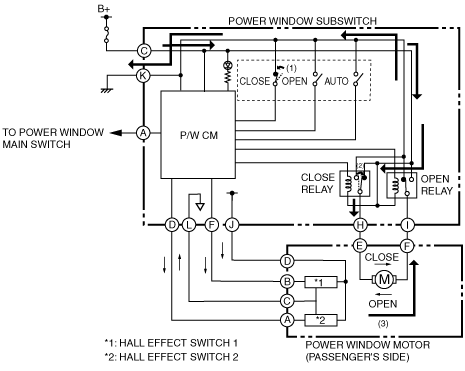

Passenger's side and rear side manual open/close operation (With all window auto open/close) (Example: Passenger's side close operation)

1.  When the power window subswitch is operated for manual close operation, the power window motor (LF) starts manual close operation.(2)

2.  When the P/W CM receives a manual close signal, it turns on the close relay. (2)

3.  When the close relay is turned on, the power window motor (RF) starts manual close operation.(3)

ac5wzn00001046


Power Window System Initial Setting

1.  The P/W CM records the driver's side door glass position when the switch is pulled and held approx. 2 s after the driver's side door glass is fully closed from the fully opened position with the ignition is switched ON (engine off or on).

•  Performing the following procedures will reset the initial setting and disables auto operation. Re-perform the initial setting.
―  Negative battery cable is disconnected
―  Power window main switch connector is disconnected
―  Power window system power supply fuse is removed


Auto Reverse Pinch Protection

1.  When the P/W CM detects a change in the pulse signal from the power window motor for 0.3 s or more during the auto close operation, it reverses the power window motor and the door glass opens approx. 200 mm {7.87 in} automatically.


IG OFF Timer (Example: Manual close operation)

1.  When the ignition is switched from ON (engine off or on) to ACC or OFF, the IG OFF timer function of the P/W CM is turned on and the power window main switch can be operated for approx. 40 s after IG OFF is detected.

2.  When the power window main switch is operated for manual close operation while the IG OFF timer is on, the P/W CM receives a manual close signal.(1)

3.  When the P/W CM receives a manual close signal, it turns on the close relay. (2)

4.  When the close relay is turned on, the power window motor (RF) starts manual close operation.(3)

5.  The P/W CM turns off the IG OFF timer function when approx. 40 s has elapsed since IG OFF is detected.

With driver's side window auto open/close

ac5wzn00001100

With all window auto open/close

ac5wzn00001037

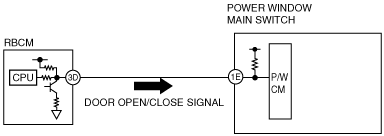

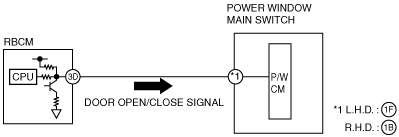

IG OFF Timer Cancel

1.  The P/W CM detects the open/close conditions of all the doors based on the door open/close signal sent from the rear body control module (RBCM).

2.  When a door open signal is sent from the rear body control module (RBCM) while the IG OFF timer is on, the IG OFF timer function is canceled.

With driver's side window auto open/close

ac5jjn00001274

With all window auto open/close

ac5wzn00001532


Fail-safe

•  When the P/W CM detects an error in the pulse signal (Hall effect switch), it switches the power window system to fail-safe mode to prevent incorrect operation.

Malfunction condition

Ignition is switched ON (engine on or off)

Ignition switched OFF

Recovery condition

P/W CM detected pulse 1 error (for pinching and door glass position detection) stop malfunction
•  Pulse 2 detected but pulse 1 is not detected during close or open operation
Auto operation is prohibited (Manual operation is enabled) Operation of power window main switch except for the driver's seat is prohibited
Auto and manual operations are prohibited
From a close operation, the power window system returns to normal mode when pulse 1 and 2 signals are received normally, and when the window fully-closed position and the window glass lowering amount during auto reverse are detected
P/W CM detected pulse 2 error (for door glass direction detection) stop malfunction
•  Pulse 1 detected but pulse 2 is not detected during close or open operation
P/W CM detected pulse signal error (inversion of pulse 1 and pulse 2 input signals or large phase deviation between pulses 1 and 2)
•  Difference detected between the direction detected by the signals of pulses 1 and 2, and the actual direction during close or open operation
P/W CM detected pulse 1 error (Non-return range lowering malfunction)
•  During close operation, a pulse 1 signal from the power window motor is detected more than the number of set times even after the window reaches the fully-closed position recorded by the power window main switch.
P/W CM detected pulse 1 and 2 stop malfunction
•  Pulse signals 1 and 2 are not detected for 1 s after the open operation is started from the fully closed position
