POWER OUTER MIRROR SYSTEM


id091200012700


Outline

•  Power outer mirrors which can be operated remotely have been adopted.

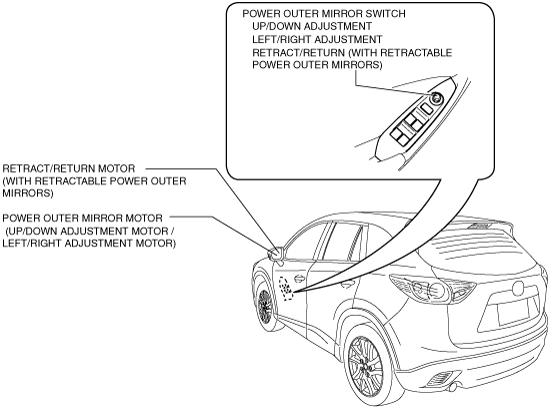

Structural view

L.H.D.

ac5wzn00000298

R.H.D.

ac5wzn00000299

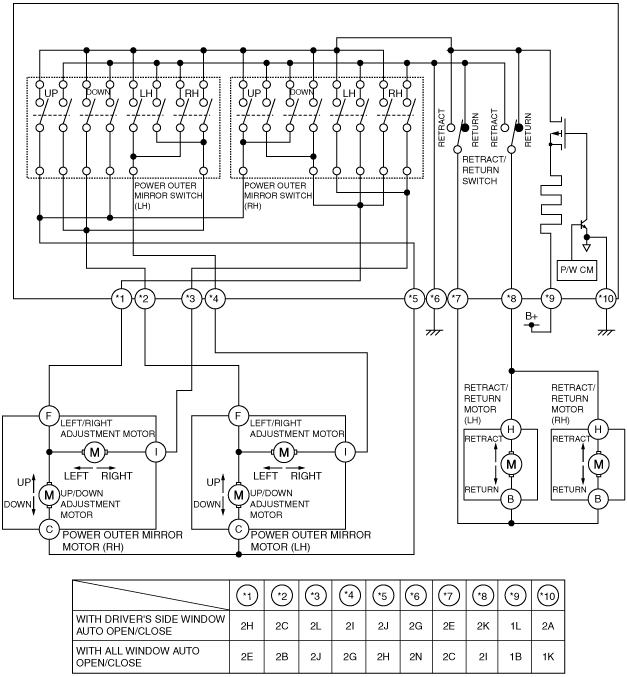

System wiring diagram

With retract/return function

ac5wzn00001231

Without retract/return function

ac5wzn00001539

Function


Mirror glass adjustment function

•  Outer mirror glass can be adjusted up/down and left/right electrically.


IG OFF timer function (With retractable power outer mirrors)

•  The power outer mirror switch can be operated for approx. 40 s after the ignition is switched from ON to ACC or OFF.


IG OFF timer cancel (With retractable power outer mirrors)

•  The IG OFF timer is canceled when approx. 40 s or more have elapsed since the ignition was switched to ACC or OFF or any door is opened during IG OFF timer operation.


Operation


Mirror glass adjustment (Example: Left outer mirror is adjusted upward)

1.  When the upward switch is turned on, the up/down adjustment motor operates upward.(2)

With retract/return function

ac5wzn00001233

Without retract/return function

ac5wzn00001541

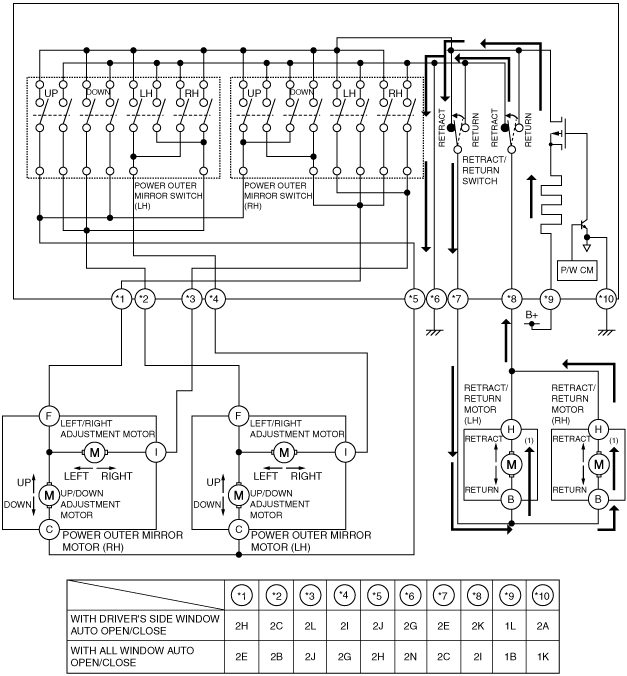

IG OFF timer (Example: retract operation)

1.  When the ignition is switched to ACC or OFF from the ON position (engine off or on), the IG OFF timer function in the P/W CM is turned ON and the power outer mirror switch can be operated for approx. 40 s after the IG OFF is detected.

2.  If retract operation is performed using the power outer mirror switch when the IG OFF timer is ON, the retract/return motor performs a retract operation (1).

3.  If approx. 40 s have elapsed after the P/W CM detects IG OFF, the IG OFF timer function turns off.

ac5wzn00001234


IG OFF Timer Cancel

1.  The P/W CM detects the open/close conditions of all the doors based on the door open/close signal sent from the rear body control module (RBCM).

2.  When a door open signal is sent from the rear body control module (RBCM) while the IG OFF timer is on, the IG OFF timer function is canceled.

ac5jjn00001284


Fail-safe

•  Function not equipped.
