POWER SEAT SWITCH INSPECTION

id091300801100

Warning

•  Handling a side air bag improperly can accidentally operate (deploy) the air bag, which may seriously injure you. Read the service warnings in the Workshop Manual before handling the front seat (side air bag integrated). (See AIR BAG SYSTEM SERVICE WARNINGS.) (See AIR BAG SYSTEM SERVICE CAUTIONS.)

With Position Memory System

1.  Switch the ignition OFF (LOCK).

2.  Disconnect the negative battery cable and wait for 1 min. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].)

3.  Remove the front seat side cover. (See FRONT SEAT SIDE COVER REMOVAL/INSTALLATION.)

4.  Remove the power seat switch. (See POWER SEAT SWITCH REMOVAL/INSTALLATION.)

5.  Verify that the continuity between the power seat switch terminals is as indicated in the table.

•  If not as indicated in the table, replace the power seat switch. (See POWER SEAT SWITCH REMOVAL/INSTALLATION.)

am6zzw00012366

Without Position Memory System

L.H.D.

1.  Switch the ignition off (LOCK).

2.  Disconnect the negative battery cable and wait for 1 min or more. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

3.  Remove the front seat side cover. (See FRONT SEAT SIDE COVER REMOVAL/INSTALLATION.)

4.  Remove the power seat switch. (See POWER SEAT SWITCH REMOVAL/INSTALLATION.)

5.  Connect the power seat switch connector.

6.  Inspect for continuity between the power seat switch connector terminals using an ohmmeter.

•  If not as specified, replace the power seat switch. (See POWER SEAT SWITCH REMOVAL/INSTALLATION.)

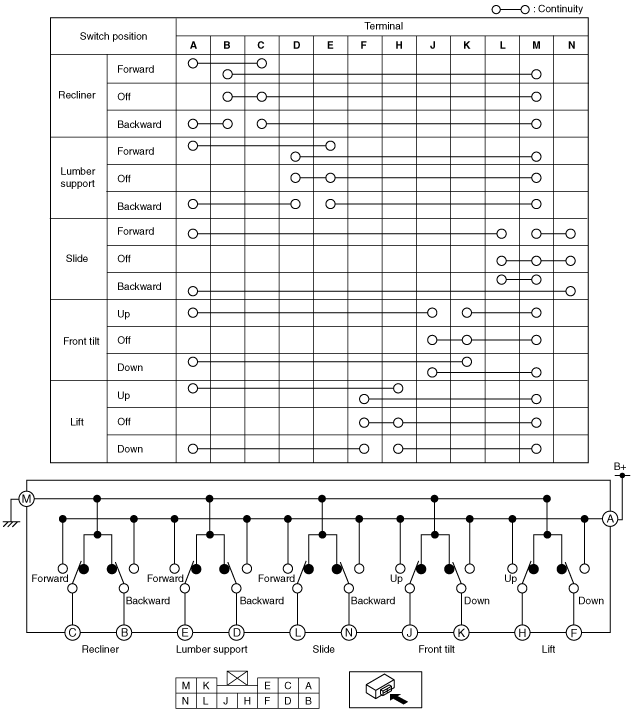

ac5uuw00002058

R.H.D.

1.  Switch the ignition off (LOCK).

2.  Disconnect the negative battery cable and wait for 1 min or more. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

3.  Remove the front seat side cover. (See FRONT SEAT SIDE COVER REMOVAL/INSTALLATION.)

4.  Remove the power seat switch. (See POWER SEAT SWITCH REMOVAL/INSTALLATION.)

5.  Connect the power seat switch connector.

6.  Inspect for continuity between the power seat switch connector terminals using an ohmmeter.

•  If not as specified, replace the power seat switch. (See POWER SEAT SWITCH REMOVAL/INSTALLATION.)

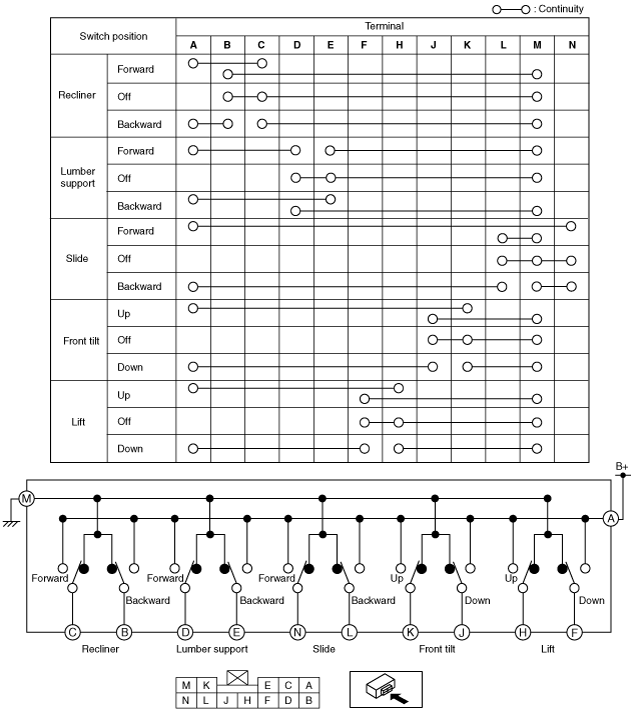

ac5wzw00003152
