DOOR LOCK-LINK SWITCH INSPECTION

id091400511500


Front Door Lock-link Inspection

1.  Perform the front door glass preparation. (See FRONT DOOR GLASS REMOVAL/INSTALLATION.)

2.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

3.  Remove the following parts:

(1)  Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION.)
(2)  Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION.)
(3)  Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION.)
(4)  Front door module panel (See FRONT DOOR MODULE PANEL REMOVAL/INSTALLATION.)
(5)  Front door key cylinder (See FRONT DOOR KEY CYLINDER REMOVAL/INSTALLATION.)
(6)  Front door latch and lock actuator (See FRONT DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)

4.  When the door lock-link switch cable is pulled or pressed in, verify that the continuity is as indicated in the table.

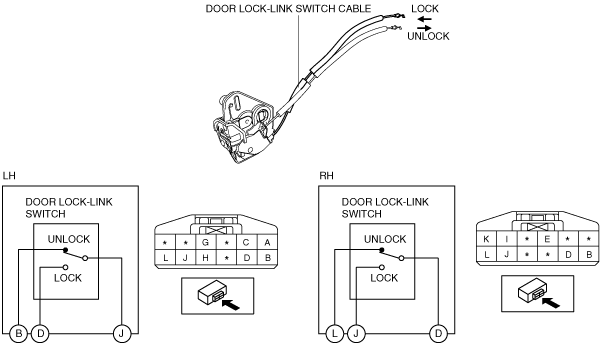

am3uuw00004540
ac5wzw00000707

•  If not as indicated in the table, replace the front door latch and lock actuator.


Rear Door Lock-link Inspection

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the following parts:

(1)  Rear door trim (See REAR DOOR TRIM REMOVAL/INSTALLATION.)
(2)  Rear inner handle (See INNER HANDLE REMOVAL/INSTALLATION.)
(3)  Rear door latch and lock actuator (See REAR DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)

3.  If the door lock condition is to be inspected, pull the door lock-link switch cable, or press it in.

4.  Verify that the continuity is as indicated in the table.

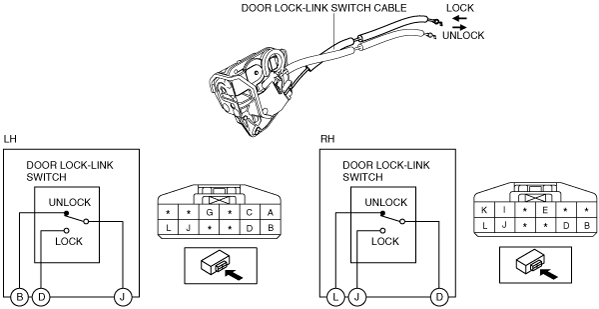

am3uuw00004540
ac5wzw00000708

•  If not as indicated in the table, replace the rear door latch and lock actuator.
