THEFT-DETERRENT SIREN INSPECTION

id091400630200

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION.)

3.  Remove the front combination light (LH). (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION.)

4.  Remove the theft-deterrent siren bracket. (See THEFT-DETERRENT SIREN REMOVAL/INSTALLATION.)

5.  Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

6.  Verify that the voltages of each of the terminals are as indicated in the terminal voltage table (reference).

•  If the voltage is not as specified in the terminal voltage table (reference), inspect the parts under Inspection item(s) and related wiring harnesses.

―  If the system does not work normally even though the parts or related wiring harnesses do not have any malfunction, replace the theft-deterrent siren.

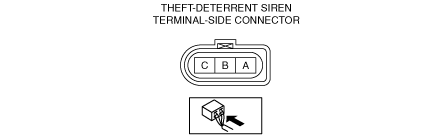

Terminal Voltage Table (Reference)

ac5wzw00002765

Terminal	Signal name	Connected to	Measurement condition	Voltage (V)	Inspection item(s)
A	DATA	Rear body control module (RBCM)	Because this terminal is for communication, determination using terminal voltage inspection is not possible.
B	Ground	Body ground	Under any condition	1.0 or less	Ground
C	Power supply	ROOM 15 A fuse	Under any condition	B+	•  ROOM 15 A fuse •  Battery

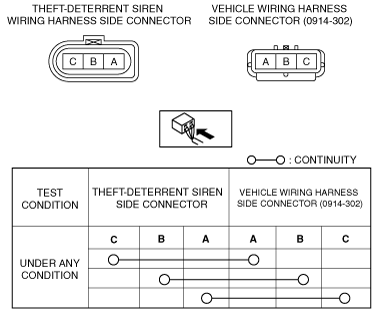

Continuity Inspection Of Short Wiring Harness Connector

1.  Verify that the continuity is as indicated in the table.

ac5jjw00001693
