SUNROOF UNIT DISASSEMBLY/ASSEMBLY

id091500800800

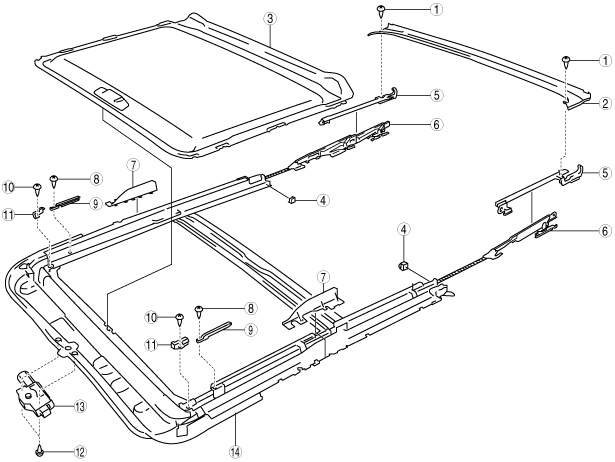

1.  Disassemble in the order indicated in the table.

ac5uuw00001725

1	Screw A
2	Drip rail
3	Sunshade (See Sunshade Disassembly Note.)
4	Rear stopper
5	Front guide (See Front Guide Disassembly Note.)
6	Decoration link (See Decoration Link Assembly Note.)
7	Screen
8	Screw B
9	Set plate
10	Screw C
11	Front stopper
12	Screw D
13	Sunroof motor
14	Sunroof frame

2.  Assemble in the reverse order of disassembly.

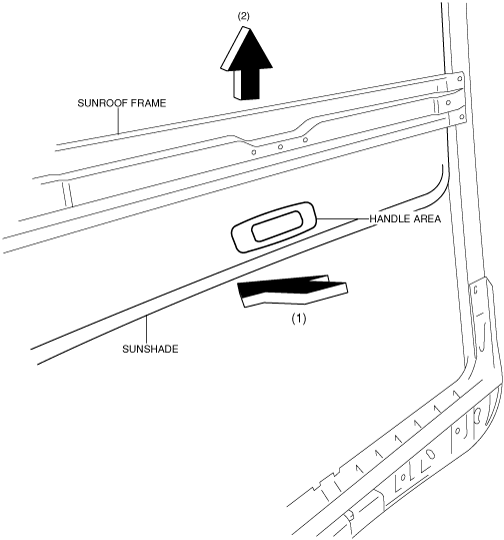

Sunshade Disassembly Note

•  Pull the sunshade in the direction of the arrow in the order of (1), (2) and remove it.

Caution

•  The sunshade may contact the sunroof frame and the handle area may be damaged. Remove the sunshade by sliding it in the direction of arrow (2) shown in the figure while lifting it in the direction of arrow (1).

ac5uuw00001978

Front Guide Disassembly Note

•  Perform mark the position shown in the figure for correct positioning.

Caution

•  If the front guide is assembled to a wrong position, the glass panel may stop at the wrong position and may be damaged. Before removing the front guide, mark the position shown in the figure for correct positioning.

ac5wzw00001728

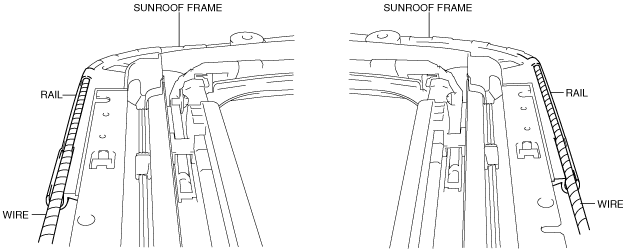

Decoration Link Assembly Note

•  To prevent the wire shown in the figure from coming off the rail, install while aligning the wire in the rail.

ac5wzw00001513
