FLOOR UNDER COVER REMOVAL/INSTALLATION

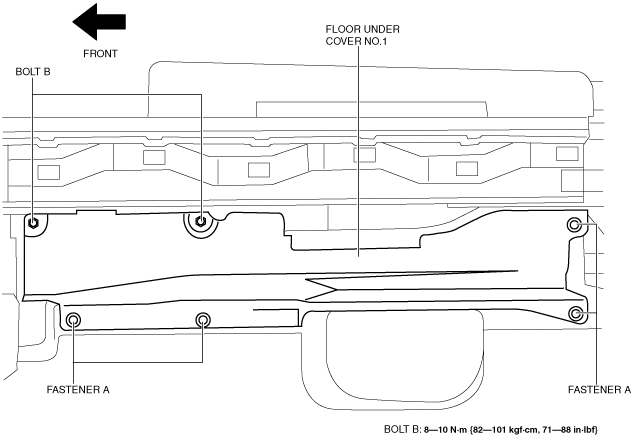

id091600820200

1.  Lift up the vehicle.

2.  Remove fasteners A.

ac5wzw00003022

3.  Remove bolts B.

4.  Remove the floor under cover No.1.

5.  Remove fasteners C.

ac5uuw00002717

6.  Remove nuts D.

7.  Remove clip E.

8.  Remove bolts F.

9.  Remove the floor under cover No.2.

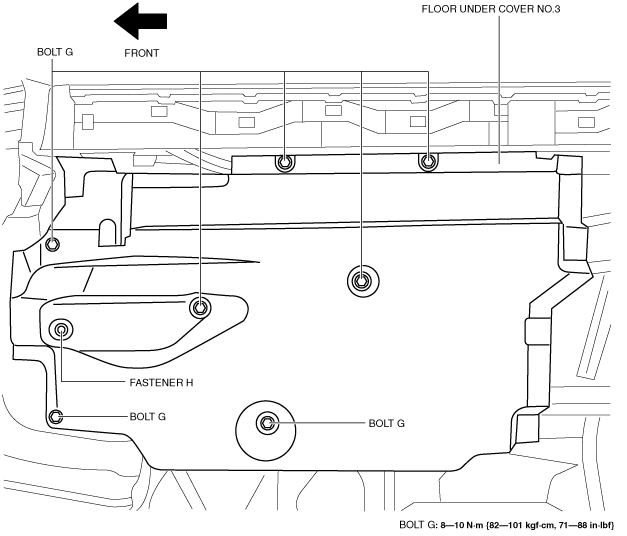

10.  Remove bolts G.

ac5wzw00007190

11.  Remove the fastener H.

12.  Remove the floor under cover No.3.

13.  Install in the reverse order of removal.
