FRONT CONSOLE BOX REMOVAL/INSTALLATION

id091700803900

Note

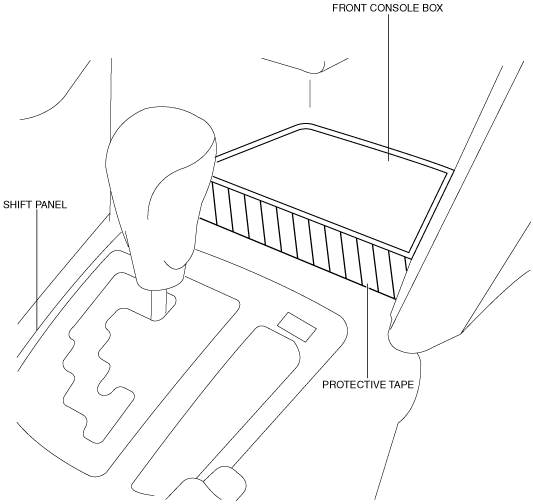

•  Affix protective tape to the position shown in the figure.

ac5wzw00001440

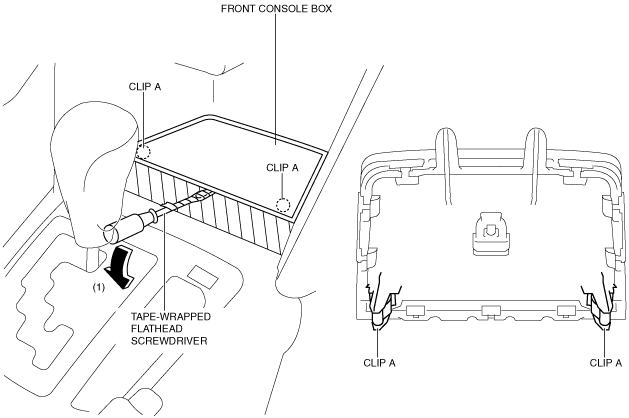

1.  Insert a tape-wrapped flathead screwdriver in the position indicated by the arrow in the figure and detach clips A.

ac5wzw00003210

2.  Pull the front console box in the direction of the arrow (2) and remove it while detaching the guides B.

ac5uuw00001785

Note

•  When the occur to gap between the front console box and shift panel, remove the shift panel then assemble to the front console box. after install the front console box and shift panel as single unit.

3.  Install in the reverse order of removal.
