FRONT DOOR TRIM DISASSEMBLY/ASSEMBLY
id091700804200
Driver-side

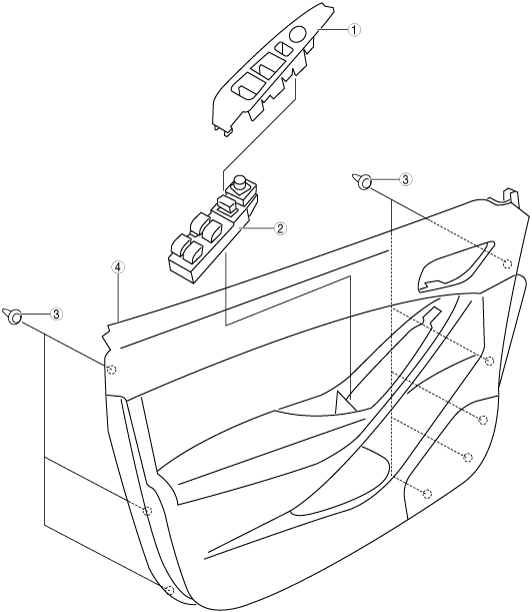

1. Disassemble in the order shown in the figure.
ac5wzw00001675
|
|
1
|
Switch panel cover
|
|
2
|
Power window main switch
|
|
3
|
Fastener
|
|
4
|
Front door trim
|
2. Assemble in the reverse order of disassembly.
Passenger-side
1. Disassemble in the order shown in the figure.
ac5wzw00001676
|
|
1
|
Switch panel cover
|
|
2
|
Power window main switch
|
|
3
|
Fastener
|
|
4
|
Front door trim
|
2. Assemble in the reverse order of disassembly.
Power Window Main Switch And Power Window Subswitch Removal Note
1. Pull the edge of power window main switch cover in the direction of arrow (1) and detach the tab.

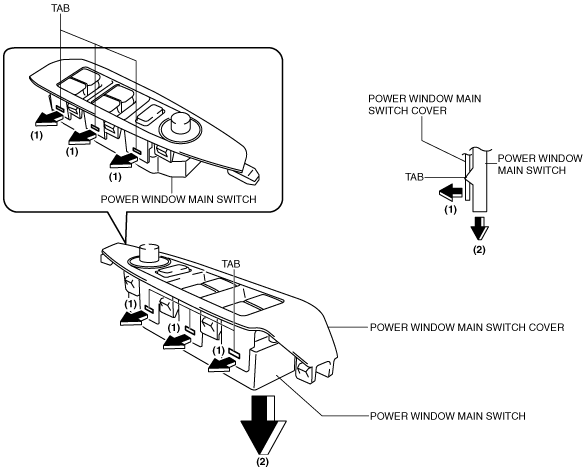

Driver-side
ac5wzw00001677
|

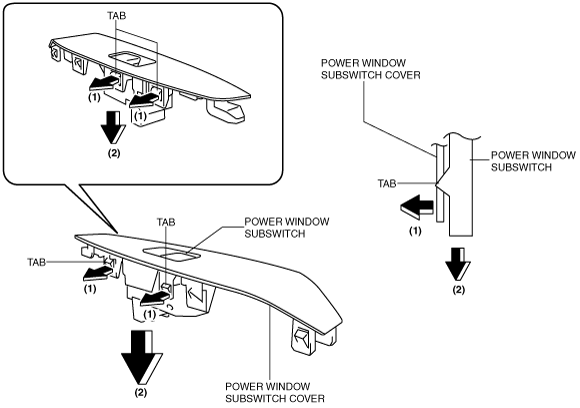

Passenger-side
ac5wzw00001678
|
2. Remove the power window main switch in the direction of arrow (2) shown in the figure.
