REAR DOOR TRIM DISASSEMBLY/ASSEMBLY
id091700804300
1. Disassemble in the order shown in the figure.
ac5wzw00001443
|
1
|
Switch panel cover
|
2
|
Power window subswitch (See Power Window Subswitch Removal Note.)
|
3
|
Fastener
|
4
|
Rear door trim
|
2. Assemble in the reverse order of disassembly.
Power Window Subswitch Removal Note

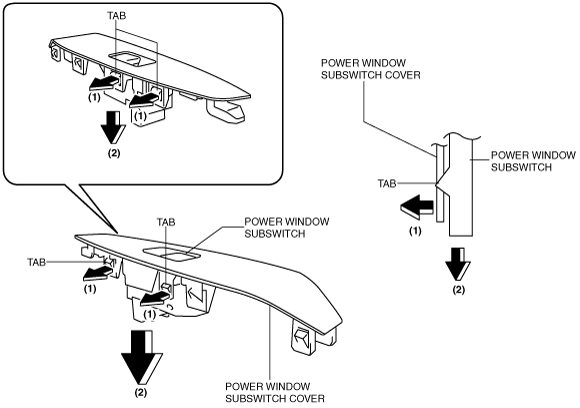

1. Pull the edge of power window subswitch cover in the direction of arrow (1) and detach the tab.
ac5wzw00002808
|
2. Remove the power window subswitch in the direction of arrow (2) shown in the figure.
