REAR CONSOLE DISASSEMBLY/ASSEMBLY
id091700898600

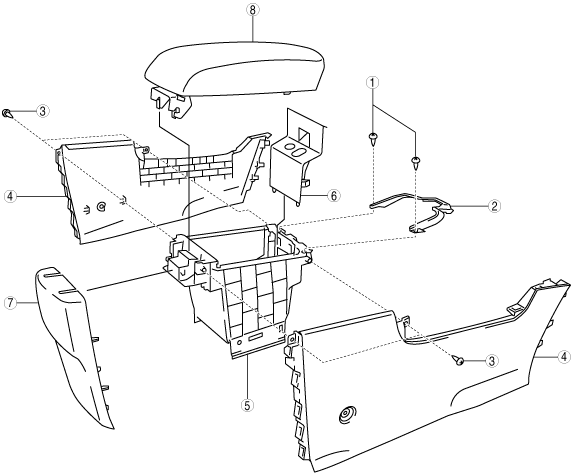

1. Disassemble in the order indicated in the table.
ac5wzw00001459
|
|
1
|
Screw A
|
|
2
|
Rear console bracket
|
|
3
|
Screw B
|
|
4
|
Side panel
|
|
5
|
Rear console box
|
|
6
|
Upper console
|
|
7
|
Rear console cover
|
|
8
|
Rear console lid
|
2. Assemble in the reverse order of disassembly.
